skf_nn3020tn9spw33
SKF

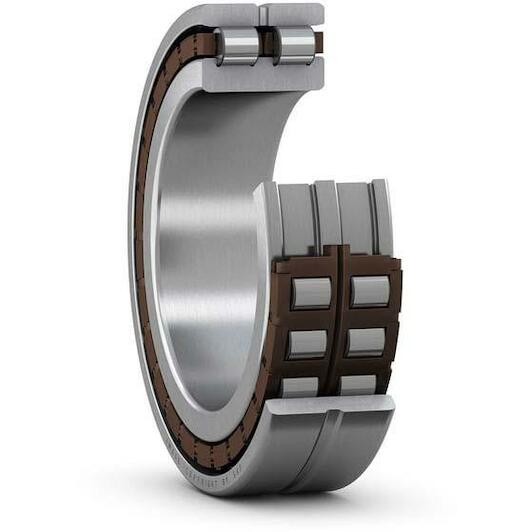

SKF NN 3020 TN9/SPW33 double-row cylindrical roller bearing with cylindrical bore 100 mm

Recommended Retail Price €1,978.08
979.20 tax incl.
€809.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit.

  • Very high radial load carrying capacity
  • High rigidity and high running accuracy
  • Minimize noise, vibration and heat generation
  • Accommodate axial displacement in both directions
  • Lubrication feature
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 37 mm
  • Number of rows: 2
  • Radial clearance: C1
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316577664280
  • Supplier number: SKF NN 3020 TN9/SPW33
Inner diameter
100 mm
Width
37 mm
Number of rows
2
Radial clearance
C1
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
150 mm
Relubrication feature
Annular groove and lubrication holes
Radial internal clearance
C1
Loose flange
None
Basic static load rating
250
Attainable speed for grease lubrication
5600
Lubricant
None
Design
NN
Cage
Non-metallic
Material, bearing
Bearing steel
Bearing part
Complete bearing
Number of flanges, inner ring
3
Tolerance class
Class SP (SP)
Basic dynamic load rating
151
Sealing
Without
Attainable speed for oil-air lubrication
6300
Bore diameter
100
Coating
Without
Outside diameter
150
