SKF

SKF NN 3015 KTN/SPW33 double-row super-precision cylindrical roller bearing 75 x 115 x 30 mm

Recommended Retail Price €1,366.03
676.20 tax incl.
€558.84 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

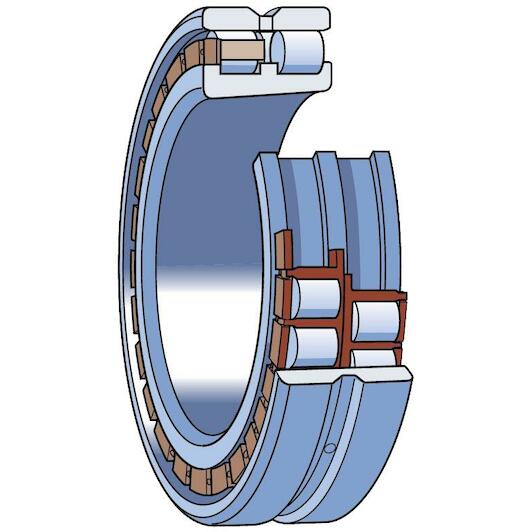

Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit. The tapered bore enables accurate adjustment of clearance or preload during mounting.

  • Very high radial load carrying capacity
  • High rigidity and high running accuracy
  • Minimize noise, vibration and heat generation
  • Accommodate axial displacement in both directions
  • Lubrication feature
Key features according to our expert
  • Inner diameter: 75 mm
  • Width: 30 mm
  • Number of rows: 2
  • Radial clearance: C1
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Tapered
  • Outer diameter: 115 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576611209
  • Supplier number: SKF NN 3015 KTN/SPW33
Inner diameter
75 mm
Width
30 mm
Number of rows
2
Radial clearance
C1
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Tapered
Outer diameter
115 mm
Relubrication feature
Annular groove and lubrication holes
Radial internal clearance
C1
Loose flange
None
Basic static load rating
150
Attainable speed for grease lubrication
7500
Lubricant
None
Design
NN
Cage
Non-metallic
Material, bearing
Bearing steel
Bearing part
Complete bearing
Number of flanges, inner ring
3
Tolerance class
Class SP (SP)
Basic dynamic load rating
96.8
Sealing
Without
Attainable speed for oil-air lubrication
8500
Bore diameter
75
Coating
Without
Outside diameter
115
