SKF

SKF NN 3014 TN/SPW33 double-row super-precision cylindrical roller bearing 70 x 110 x 30 mm

Recommended Retail Price €1,393.36
689.80 tax incl.
€570.08 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

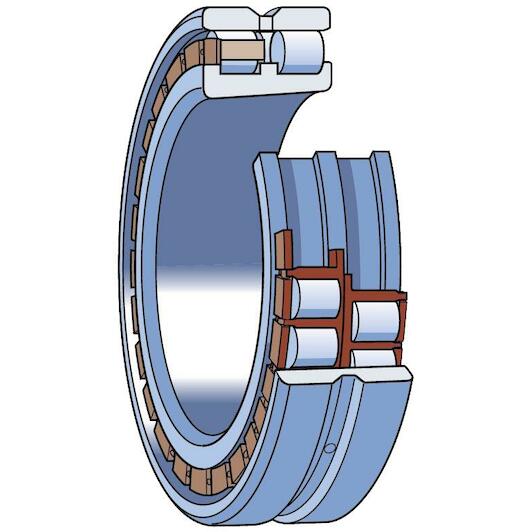

Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit.

  • Very high radial load carrying capacity
  • High rigidity and high running accuracy
  • Minimize noise, vibration and heat generation
  • Accommodate axial displacement in both directions
  • Lubrication feature
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 30 mm
  • Number of rows: 2
  • Radial clearance: C1
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 110 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316577012746
  • Supplier number: SKF NN 3014 TN/SPW33
Inner diameter
70 mm
Width
30 mm
Number of rows
2
Radial clearance
C1
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
110 mm
Relubrication feature
Annular groove and lubrication holes
Radial internal clearance
C1
Loose flange
None
Basic static load rating
150
Attainable speed for grease lubrication
8000
Lubricant
None
Design
NN
Cage
Non-metallic
Material, bearing
Bearing steel
Bearing part
Complete bearing
Number of flanges, inner ring
3
Tolerance class
Class SP (SP)
Basic dynamic load rating
96.8
Sealing
Without
Attainable speed for oil-air lubrication
9000
Bore diameter
70
Coating
Without
Outside diameter
110
