SKF

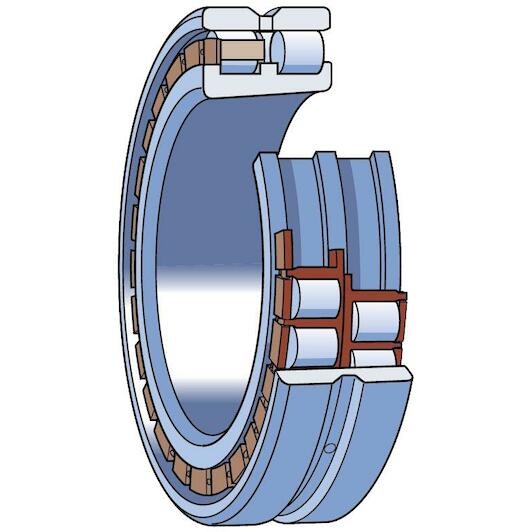

SKF NN 3006 KTN/SP double-row super-precision cylindrical roller bearing 30 x 55 x 19 mm

Recommended Retail Price €992.02
490.95 tax incl.
€405.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit. The tapered bore enables accurate adjustment of clearance or preload during mounting.

  • Very high radial load carrying capacity
  • High rigidity and high running accuracy
  • Minimize noise, vibration and heat generation
  • Accommodate axial displacement in both directions
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 19 mm
  • Number of rows: 2
  • Radial clearance: C1
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Tapered
  • Outer diameter: 55 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577726506
  • Supplier number: SKF NN 3006 KTN/SP
Inner diameter
30 mm
Width
19 mm
Number of rows
2
Radial clearance
C1
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Tapered
Outer diameter
55 mm
Relubrication feature
Without
Radial internal clearance
C1
Loose flange
None
Basic static load rating
37.5
Attainable speed for grease lubrication
17000
Lubricant
None
Design
NN
Cage
Non-metallic
Material, bearing
Bearing steel
Bearing part
Complete bearing
Number of flanges, inner ring
3
Tolerance class
Class SP (SP)
Basic dynamic load rating
30.8
Sealing
Without
Attainable speed for oil-air lubrication
19000
Bore diameter
30
Coating
Without
Outside diameter
55
