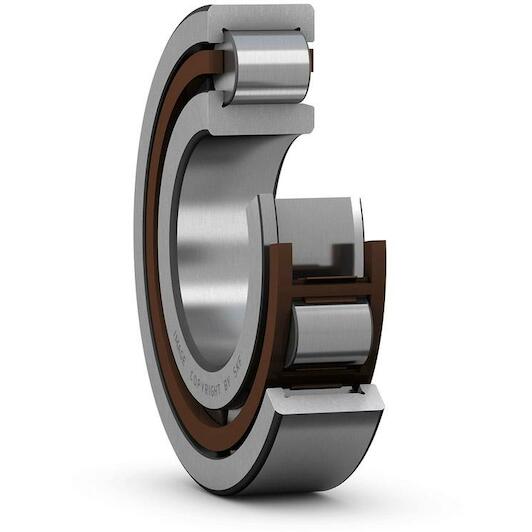

SKF NJ 313 ECP/C4VQ015 Single-row cylindrical roller bearing 65 x 140 x 33 mm

SKF
Supplier number: SKF NJ 313 ECP/C4VQ015 | EAN 7316570064865
This product has been discontinued.

↓ Documents (1) ✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 65 mm
  • Width: 33 mm
  • Number of rows: 1
  • Radial clearance: C4
  • Material (cage): Plastic
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 140 mm

Product description:

  • Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
  • The rollers are guided by fixed track collars on one of the bearing rings
  • The bearing ring with the track collars and roller set can be slid off from the other ring
  • This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
  • A cylindrical roller bearing can withstand (limited) axial displacement
  • Full complement cylindrical roller bearings: contain as many rollers as possible
  • Double-row cylindrical roller bearing: consist of two rows of cylinders

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
65 mm
Width
33 mm
Number of rows
1
Radial clearance
C4
Material (cage)
Plastic
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
140 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
C4
Loose flange
None
Basic static load rating
196 kN
Cage
Non-metallic
Reference speed
5,300 r/min
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Number of flanges, inner ring
1
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
6,000 r/min
Bore diameter
65 mm
Basic dynamic load rating
212 kN
Coating
Without
Outside diameter
140 mm
Axial displacement capability
In one direction
  • Brand SKF
  • EAN 7316570064865
  • Supplier number SKF NJ 313 ECP/C4VQ015
