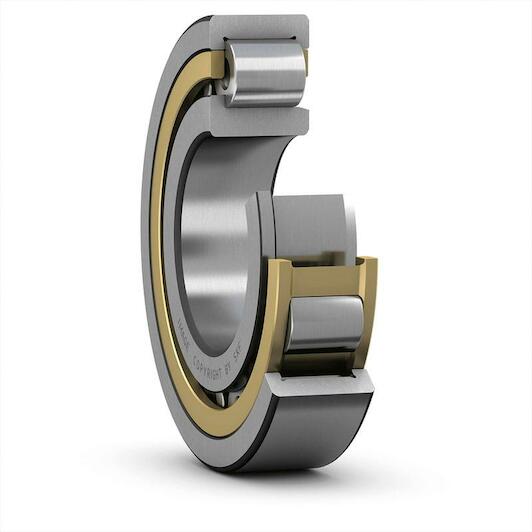

SKF NJ 236 ECMA cylinder bearing 180 x 320 x 52 mm - NJ 236 ECML

SKF
Supplier number: SKF NJ 236 ECML | EAN 7316575031657
Recommended Retail Price €4,346.11
2,151.60 tax incl.
€1,778.18 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/10/2026

  • Ordered before 20:00 - delivered as of 23/10/2026
  • Free shipping
  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€2,151.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 180 mm
  • Width: 52 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 320 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
180 mm
Width
52 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
320 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Basic static load rating
850
Cage
Machined metal
Reference speed
2200
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Number of flanges, inner ring
1
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
3600
Bore diameter
180
Basic dynamic load rating
720
Coating
Without
Outer diameter
320
Axial displacement capability
In one direction
  • Brand SKF
  • EAN 7316575031657
  • Supplier number SKF NJ 236 ECML
