SKF

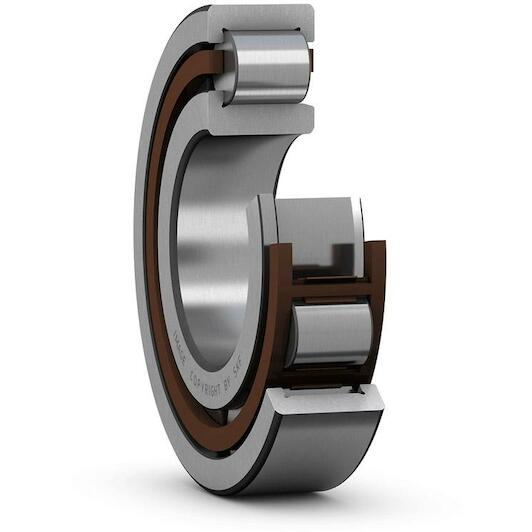

SKF NJ 2314 ECP/C3 single-row cylindrical roller bearing 70 x 150 x 51 mm

Recommended Retail Price €928.77
459.80 tax incl.
€380.00 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 51 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577114037
  • Supplier number: SKF NJ 2314 ECP/C3
Inner diameter
70 mm
Width
51 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
150 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Basic static load rating
325
Cage
Non-metallic
Reference speed
4800
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Number of flanges, inner ring
1
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
5600
Bore diameter
70
Basic dynamic load rating
315
Coating
Without
Outside diameter
150
Axial displacement capability
In one direction
