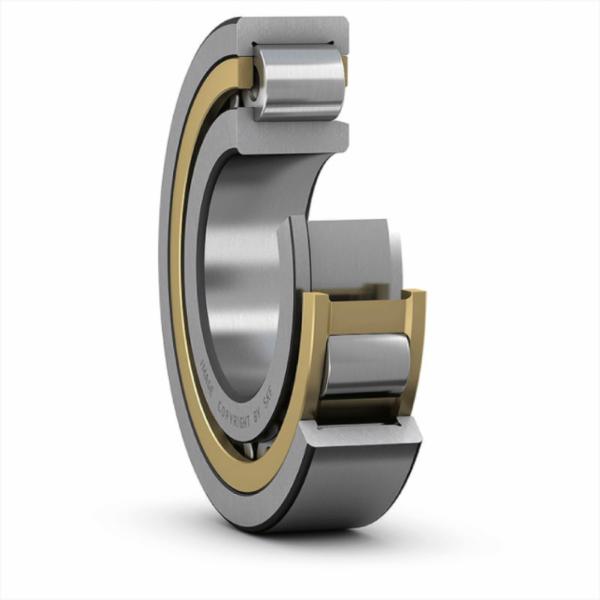

SKF NJ 2206 ECML/C4 single-row cylindrical roller bearing 30 x 62 x 20 mm

SKF
Supplier number: SKF NJ 2206 ECML/C4 | EAN 7316571411453
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 30 mm
  • Width: 20 mm
  • Number of rows: 1
  • Radial clearance: C4
  • Material (cage): Brass (solid)
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 62 mm

Product description:

  • Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
  • The rollers are guided by fixed track collars on one of the bearing rings
  • The bearing ring with the track collars and roller set can be slid off from the other ring
  • This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
  • A cylindrical roller bearing can withstand (limited) axial displacement
  • Full complement cylindrical roller bearings: contain as many rollers as possible
  • Double-row cylindrical roller bearing: consist of two rows of cylinders

All Features

Inner diameter
30 mm
Width
20 mm
Number of rows
1
Radial clearance
C4
Material (cage)
Brass (solid)
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
62 mm
Relubrication feature
Without
Radial internal clearance
C4
Loose flange
None
Basic static load rating
49 kN
Number of flanges, inner ring
1
Reference speed
13,000 r/min
Skf performance class
SKF Explorer
Lubricant
None
Cage
Machined metal
Bearing part
Complete bearing
Tolerance class
Normal
Bore diameter
30 mm
Locating feature, bearing outer ring
None
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
22,000 r/min
Basic dynamic load rating
55 kN
Coating
Without
Outer diameter
62 mm
Axial displacement capability
In one direction
  • Brand SKF
  • EAN 7316571411453
  • Supplier number SKF NJ 2206 ECML/C4
