SKF

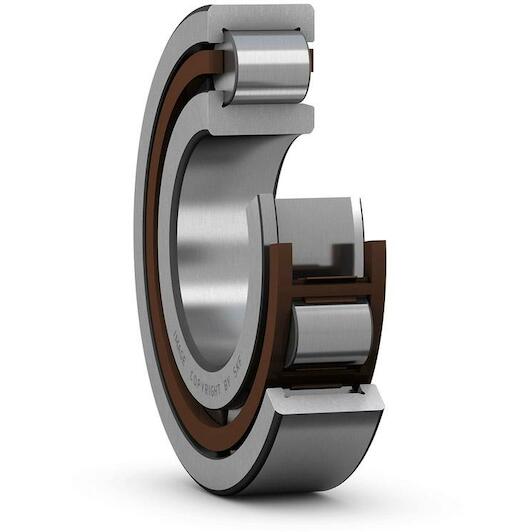

SKF NJ 209 ECP single-row cylindrical roller bearing 45 x 85 x 19 mm

Recommended Retail Price €184.56
91.20 tax incl.
€75.37 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 5 products in stock.
each

  • Ordered before 20:00 - delivered as of 15/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 19 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 85 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577022691
  • Supplier number: SKF NJ 209 ECP
Inner diameter
45 mm
Width
19 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
85 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Basic static load rating
64
Cage
Non-metallic
Reference speed
9000
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Number of flanges, inner ring
1
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
9500
Bore diameter
45
Basic dynamic load rating
69.5
Coating
Without
Outside diameter
85
Axial displacement capability
In one direction
