SKF

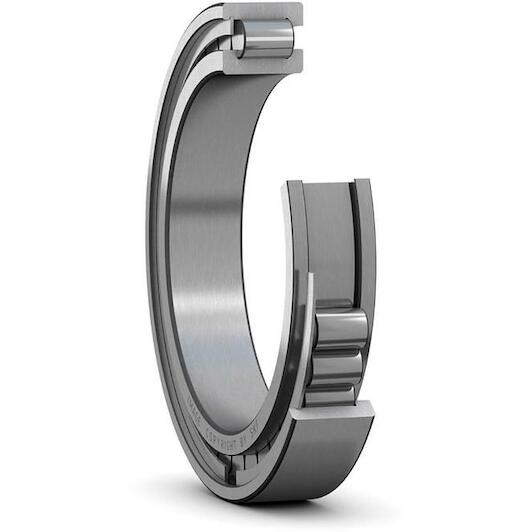

SKF NCF 3004 CV Single-row cylindrical roller bearing 20 x 42 x 16 mm

Recommended Retail Price €197.29
97.60 tax incl.
€80.66 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.

  • Very high radial load carrying capacity
  • High radial stiffness
  • Long service life
  • Locate the shaft axially in one direction
Key features according to our expert
  • Inner diameter: 20 mm
  • Width: 16 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 42 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577723611
  • Supplier number: SKF NCF 3004 CV
Inner diameter
20 mm
Width
16 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
42 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Basic static load rating
28.5
Cage
Without
Reference speed
8500
Lubricant
None
Design
Non-separable
Locating feature, bearing outer ring
None
Number of flanges, inner ring
2
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
1
Limiting speed
10000
Bore diameter
20
Basic dynamic load rating
28.1
Coating
Without
Outside diameter
42
Axial displacement capability
In one direction
