SKF

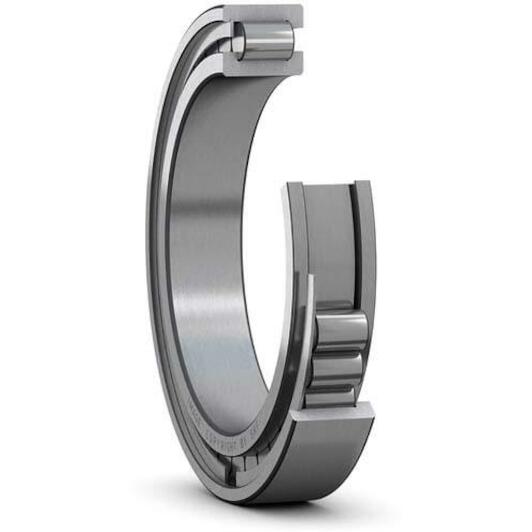

SKF NCF 2960 CV Single-row full complement cylindrical roller bearing with NCF design 300 mm

Recommended Retail Price €7,276.81
3,602.60 tax incl.
€2,977.36 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.

  • Very high radial load carrying capacity
  • High radial stiffness
  • Long service life
  • Locate the shaft axially in one direction
Key features according to our expert
  • Inner diameter: 300 mm
  • Width: 72 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 420 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316572412893
  • Supplier number: SKF NCF 2960 CV
Inner diameter
300 mm
Width
72 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
420 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Basic static load rating
2200
Cage
Without
Reference speed
630
Lubricant
None
Design
Non-separable
Locating feature, bearing outer ring
None
Number of flanges, inner ring
2
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
1
Limiting speed
800
Bore diameter
300
Basic dynamic load rating
1120
Coating
Without
Outside diameter
420
Axial displacement capability
In one direction
