SKF

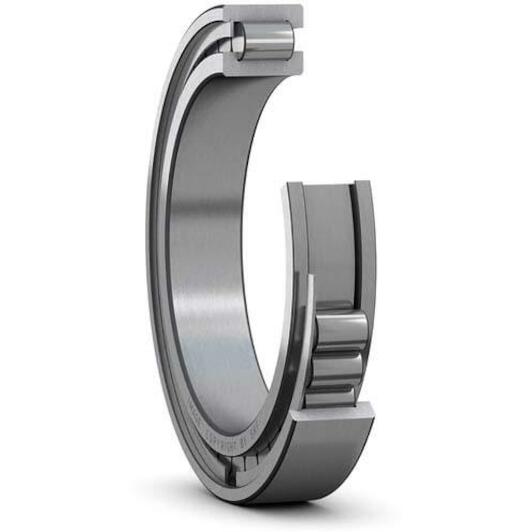

SKF NCF 2930 CV Single-row full complement cylindrical roller bearing with NCF design 150 mm

Recommended Retail Price €1,225.80
606.80 tax incl.
€501.49 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.

  • Very high radial load carrying capacity
  • High radial stiffness
  • Long service life
  • Locate the shaft axially in one direction
Key features according to our expert

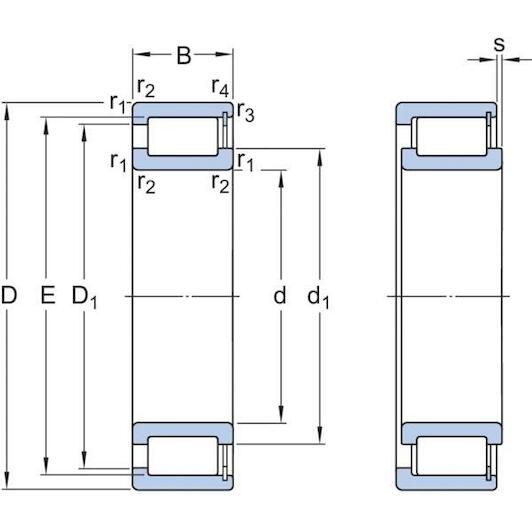

  • Inner diameter: 150 mm
  • Width: 36 mm
  • Outer diameter: 210 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316572305652
  • Supplier number: SKF NCF 2930 CV
Inner diameter
150 mm
Width
36 mm
Outer diameter
210 mm
Locating feature, bearing outer ring
None
Bore type
Cylindrical
Number of flanges, inner ring
2
Cage
Without
Design
Non-separable
Lubricant
None
Reference speed
1400
Relubrication feature
Without
Basic static load rating
490
Loose flange
None
Radial internal clearance
CN
Tolerance class
Normal
Bearing part
Complete bearing
Number of flanges, outer ring
1
Sealing
Without
Limiting speed
1700
Bore diameter
150
Number of rows
1
Basic dynamic load rating
292
Coating
Without
Outside diameter
210
Axial displacement capability
In one direction
