What are the dimensions of this SKF support roller?

The roller has an outer diameter of 19 mm, an inner diameter of 6 mm, and a width of 12 mm.

Does the SKF NATV 6 PPA include seals?

Yes, this support roller comes with integrated contact seals on both sides to keep contaminants out.

Can this track roller be relubricated?

Yes, the inner ring features a lubrication hole to allow easy regreasing during maintenance.

What applications is this yoke-type roller suitable for?

It is designed to run on all track types, in cam drives, and in conveyor systems.

What profile does the outer ring running surface have?

The outer ring has a crowned running surface to accommodate angular misalignments and reduce stress.

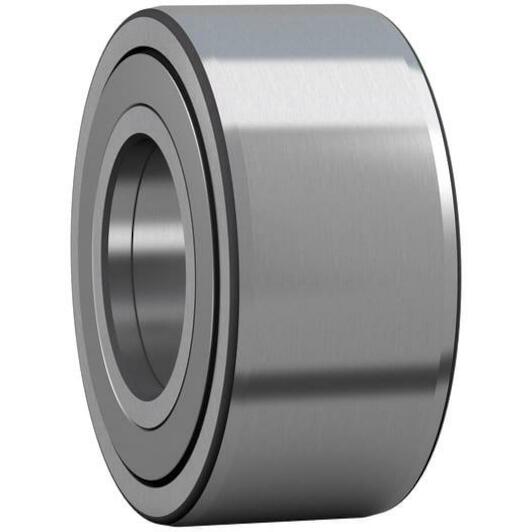

SKF NATV 6 PPA support roller with inner ring and flange seal (Yoke-type idler) 19 x 6 x 12 mm - NATV 6 PP

Supplier number: SKF NATV 6 PP | EAN 7316570461831

Recommended Retail Price €78.83

38.80 tax incl.

€32.07 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable tracking with Skf NATV 6 PPA

Practical benefits

High radial load capacity: The full complement needle roller design ensures you can handle heavy radial loads in demanding track applications.
Integrated protective sealing: With built-in flange contact seals, you prevent dirt ingress and prolong the operational service life of the roller.
Quick and easy relubrication: You can easily add grease through the lubrication hole in the inner ring without disassembling your setup.

In a nutshell

The right choise for

With the Skf natv 6 ppa support roller, you ensure smooth and reliable tracking in demanding cam drives, linear guides, and conveyor systems. Thanks to its full complement needle roller design, this compact 19 x 6 x 12 mm yoke-type roller effortlessly handles heavy radial loads. The integrated flange seals provide dependable protection against dirt, dust, and moisture, preventing premature wear and extending component life. a crowned running surface accommodates angular misalignments to reduce stress, while the lubrication hole in the inner ring allows fast relubrication without dismantling the assembly. Keep your automated production lines running efficiently with minimal downtime.

Product information FAQ

€38.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 6 mm
Width: 12 mm
Outer diameter: 19 mm

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 6 mm
Width: 12 mm
Outer diameter: 19 mm
Axial guidance of outer ring: Yes
Rolling elements: Needle rollers
Functional outside diameter: 19
Material, bearing: Bearing steel
Cage: Without
Sealing type: Contact
Width, outer ring: 11
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 7.35
Radial internal clearance: Between C2 and CN
Tolerance class: Other
Bearing part: Complete track roller
Number of flanges, outer ring: 2
Sealing: Seal on both sides
Width, total: 12
Outer ring profile: Crowned
Limiting speed: 3800
Bore diameter: 6
Number of rows: 1
Basic dynamic load rating: 4.73
Coating: Without
Application: Support roller

Brand SKF
01210238
EAN 7316570461831
Supplier number SKF NATV 6 PP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF support roller?: The roller has an outer diameter of 19 mm, an inner diameter of 6 mm, and a width of 12 mm.
Does the SKF NATV 6 PPA include seals?: Yes, this support roller comes with integrated contact seals on both sides to keep contaminants out.
Can this track roller be relubricated?: Yes, the inner ring features a lubrication hole to allow easy regreasing during maintenance.
What applications is this yoke-type roller suitable for?: It is designed to run on all track types, in cam drives, and in conveyor systems.
What profile does the outer ring running surface have?: The outer ring has a crowned running surface to accommodate angular misalignments and reduce stress.
