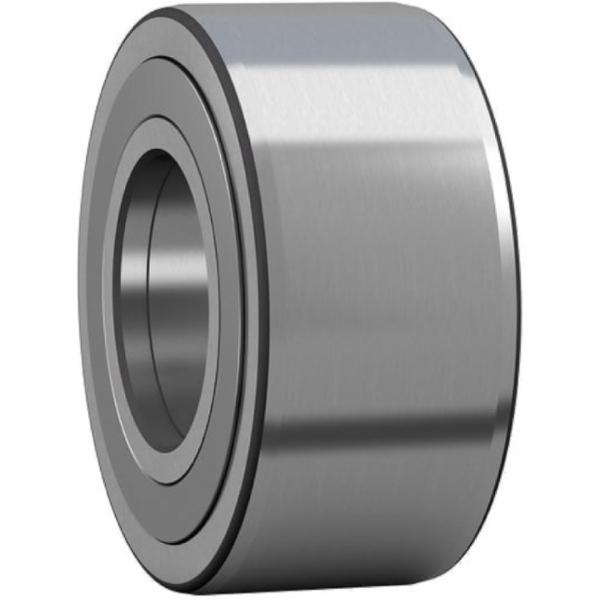

SKF NATV 5 support roller with inner ring and flange seal (Yoke type track roller) 16 x 5 x 12 mm

Show more features

Inner diameter

5 mm

Width

12 mm

Outer diameter

16 mm

Axial guidance of outer ring

Yes

Functional outside diameter

16 mm

Material, bearing

Bearing steel

Cage

Without

Sealing type

Gap-type

Width, outer ring

11 mm

Lubricant

Grease

Relubrication feature

With

Basic static load rating

6 kN

Radial internal clearance

Between C2 and CN

Tolerance class

Other

Bearing part

Complete track roller

Number of flanges, outer ring

2

Sealing

Seal on both sides

Width, total

12 mm

Outer ring profile

Crowned

Limiting speed

4,300 r/min

Bore diameter

5 mm

Number of rows

1

Basic dynamic load rating

4.29 kN

Coating

Without

Rolling elements

Needle rollers
