SKF

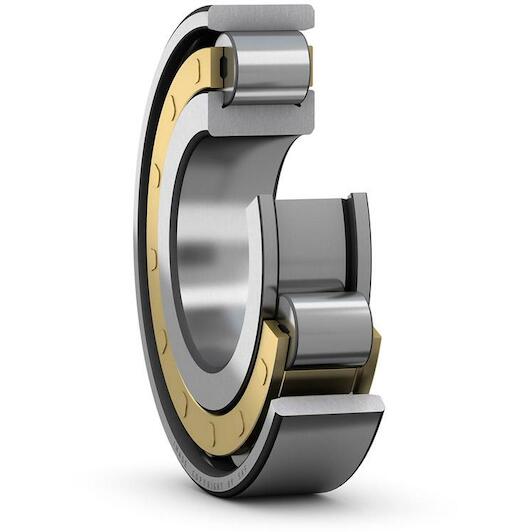

SKF N 319 ECM single-row cylindrical roller bearing 95 x 200 x 45 mm

Recommended Retail Price €3,143.76
1,556.40 tax incl.
€1,286.28 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 95 mm
  • Width: 45 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 200 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576625725
  • Supplier number: SKF N 319 ECM
Inner diameter
95 mm
Width
45 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
200 mm
Relubrication feature
Without
Radial internal clearance
CN
Loose flange
None
Basic static load rating
390
Number of flanges, inner ring
2
Reference speed
3600
Skf performance class
SKF Explorer
Lubricant
None
Cage
Machined metal
Bearing part
Complete bearing
Tolerance class
Normal
Locating feature, bearing outer ring
None
Sealing
Without
Limiting speed
4300
Bore diameter
95
Basic dynamic load rating
390
Coating
Without
Outside diameter
200
Axial displacement capability
In both directions
