SKF

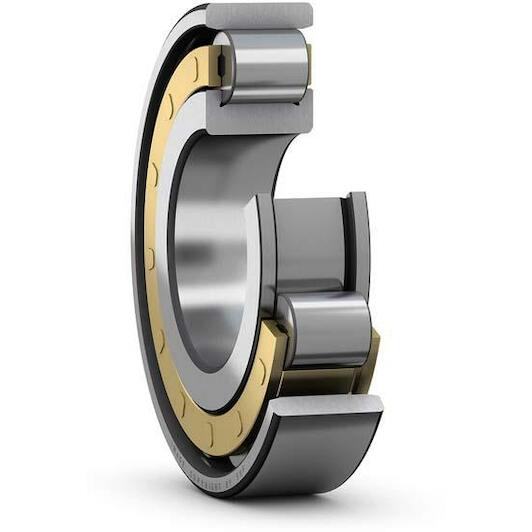

SKF N 313 ECM Single-row cylindrical roller bearing with N-design 65 mm

Recommended Retail Price €1,849.29
915.40 tax incl.
€756.53 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 65 mm
  • Width: 33 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 140 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576624452
  • Supplier number: SKF N 313 ECM
Inner diameter
65 mm
Width
33 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
140 mm
Relubrication feature
Without
Radial internal clearance
CN
Loose flange
None
Basic static load rating
196
Cage
Machined metal
Reference speed
5300
Skf performance class
SKF Explorer
Lubricant
None
Bearing part
Complete bearing
Number of flanges, inner ring
2
Tolerance class
Normal
Locating feature, bearing outer ring
None
Sealing
Without
Limiting speed
6000
Bore diameter
65
Basic dynamic load rating
212
Coating
Without
Outside diameter
140
Axial displacement capability
In both directions
