SKF

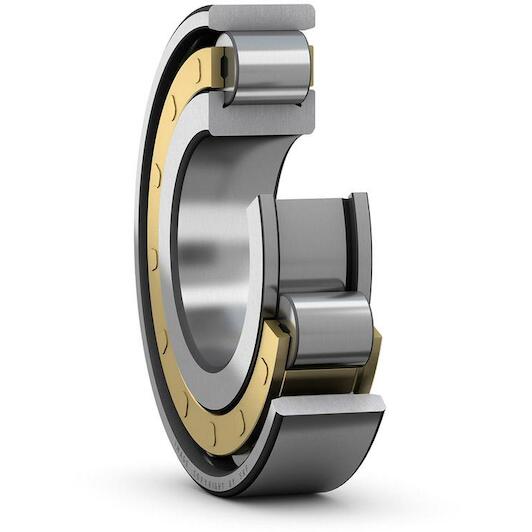

SKF N 311 ECMB/P6 single-row cylindrical roller bearing 55 x 120 x 29 mm

This article is not available

Product description:

  • Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
  • The rollers are guided by fixed track collars on one of the bearing rings
  • The bearing ring with the track collars and roller set can be slid off from the other ring
  • This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
  • A cylindrical roller bearing can withstand (limited) axial displacement
  • Full complement cylindrical roller bearings: contain as many rollers as possible
  • Double-row cylindrical roller bearing: consist of two rows of cylinders
Key features according to our expert
  • Inner diameter: 55 mm
  • Width: 29 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 120 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577031129
  • Supplier number: SKF N 311 ECMB/P6
Inner diameter
55 mm
Width
29 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
120 mm
Relubrication feature
Without
Tolerance class
Class 6 (P6)
Radial internal clearance
CN
Loose flange
None
Basic static load rating
143 kN
Cage
Machined metal
Reference speed
6,000 r/min
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Number of flanges, inner ring
2
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
0
Limiting speed
9,500 r/min
Bore diameter
55 mm
Basic dynamic load rating
156 kN
Coating
Without
Outside diameter
120 mm
Axial displacement capability
In both directions
