Product description:

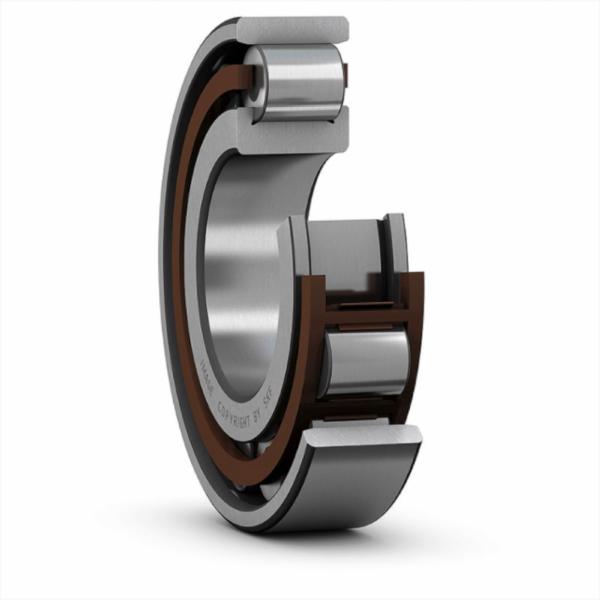

- Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
- The rollers are guided by fixed track collars on one of the bearing rings
- The bearing ring with the track collars and roller set can be slid off from the other ring
- This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
- A cylindrical roller bearing can withstand (limited) axial displacement
- Full complement cylindrical roller bearings: contain as many rollers as possible
- Double-row cylindrical roller bearing: consist of two rows of cylinders
Key features according to our expert
-
Inner diameter: 90 mm
-
Width: 30 mm
-
Number of rows: 1
-
Radial clearance: C3
-
Material (cage): Plastic
-
Seal (bearing): Without seal
-
Material (bearing seal): Not applicable
-
Bore type: Cylindrical
-
Outer diameter: 160 mm
Specifications / All features
-
Brand:
SKF
-
01995588
-
EAN:
7316570137989
-
Supplier number:
SKF N 218 ECP/C3
- Inner diameter
- 90 mm
- Width
- 30 mm
- Number of rows
- 1
- Radial clearance
- C3
- Material (cage)
- Plastic
- Seal (bearing)
- Without seal
- Material (bearing seal)
- Not applicable
- Bore type
- Cylindrical
- Outer diameter
- 160 mm
- Relubrication feature
- Without
- Radial internal clearance
- C3
- Loose flange
- None
- Basic static load rating
- 220 kN
- Number of flanges, inner ring
- 2
- Reference speed
- 4,500 r/min
- Skf performance class
- SKF Explorer
- Lubricant
- None
- Cage
- Non-metallic
- Bearing part
- Complete bearing
- Tolerance class
- Normal
- Bore diameter
- 90 mm
- Locating feature, bearing outer ring
- None
- Sealing
- Without
- Number of flanges, outer ring
- 0
- Limiting speed
- 5,000 r/min
- Basic dynamic load rating
- 208 kN
- Coating
- Without
- Outside diameter
- 160 mm
- Axial displacement capability
- In both directions
