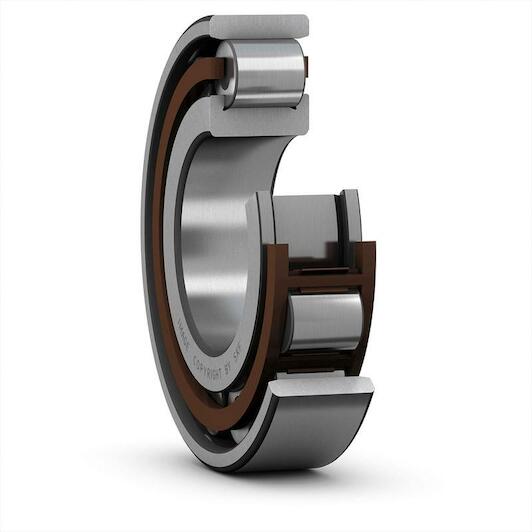

SKF N 205 ECP single-row cylindrical roller bearing 25 x 52 x 15 mm

Supplier number: SKF N 205 ECP | EAN 7316577061676
Recommended Retail Price €171.72
84.95 tax incl.
€70.21 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/10/2026

  • Ordered before 20:00 - delivered as of 27/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL


€84.95
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 25 mm
  • Width: 15 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 52 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

Documents

All Features

Inner diameter
25 mm
Width
15 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
52 mm
Relubrication feature
Without
Radial internal clearance
CN
Loose flange
None
Basic static load rating
27
Number of flanges, inner ring
2
Reference speed
15000
Skf performance class
SKF Explorer
Lubricant
None
Cage
Non-metallic
Bearing part
Complete bearing
Tolerance class
Normal
Locating feature, bearing outer ring
None
Sealing
Without
Limiting speed
16000
Bore diameter
25
Basic dynamic load rating
32.5
Coating
Without
Outer diameter
52
Axial displacement capability
In both directions
  • Brand SKF
  • EAN 7316577061676
  • Supplier number SKF N 205 ECP
