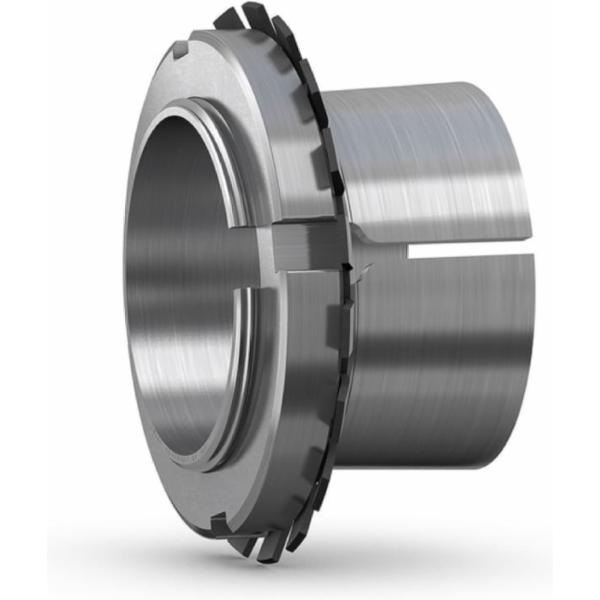

SKF H 3140 L tension sleeve for metric shafts 180 x 150 mm M200x3

SKF

Supplier number: SKF H 3140 L | EAN 7316571256979

Recommended Retail Price €2,352.36

1,164.60 tax incl.

€962.48 excl. VAT (incl. all environmental contributions)

On order: delivered from 25/11/2026

Ordered before 20:00 - delivered as of 25/11/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Product information

€1,164.60

tax incl.

Key features according to our expert

Inner diameter: 180 mm
Width: 150 mm
Thread size*: M200 x 3

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Avantages

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

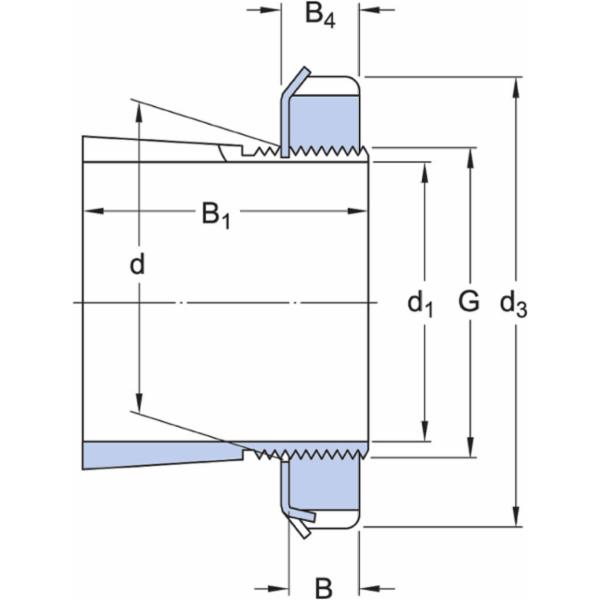

All Features

Inner diameter: 180 mm
Width: 150 mm
Thread size*: M200 x 3
Bore diameter: 180 mm
Taper: 1:12
Holes for oil injection: Without
Thread designation: M200x3

Brand SKF
01233778
EAN 7316571256979
Supplier number SKF H 3140 L
