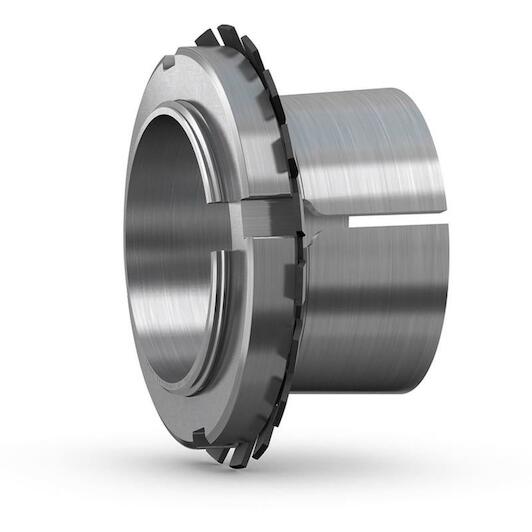

SKF H 308 Bushing for metric axles 35 x 36 mm M40x1.5

Supplier number: SKF H 308 | EAN 7316577008473

Recommended Retail Price €55.27

27.20 tax incl.

€22.48 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 29/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable mounting with Skf H 308

Practical benefits

Easy and secure installation: You can mount bearings with a tapered bore quickly onto plain or stepped 35 mm cylindrical shafts.
Supplied with locking accessories: The adapter sleeve comes complete with a KM lock nut and MB lock washer for immediate, dependable retention.
Stable and vibration-resistant fit: Designed with a 1:12 taper and M40X1.5 thread, it delivers maximum clamping integrity under tough operating loads.

In a nutshell

The right choise for

With the Skf h 308 adapter sleeve, you can mount tapered bore bearings quickly and securely onto plain or stepped 35 mm cylindrical shafts. This setup eliminates the need for complex shaft machining, prevents axial slippage, and allows precise adjustment of internal bearing clearance. Engineered with a 1:12 taper, a 36 mm width, and an M40X1.5 thread, it provides a firm, vibration-resistant fit under demanding mechanical loads. Supplied complete with a km 8 lock nut and an mb 8 lock washer, this adapter sleeve is ready for immediate installation in machine building, drive shaft maintenance, and plant repairs.

Product information FAQ

€27.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 36 mm
Thread size*: M40 x 1,5

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 36 mm
Thread size*: M40 x 1,5
Bore diameter: 35
Taper: 1:12
Holes for oil injection: Without
Thread designation: M40x1.5

Brand SKF
01230524
EAN 7316577008473
Supplier number SKF H 308

Frequently asked questions about this product

Answered by specialists

What is the SKF H 308 adapter sleeve used for?: It is used to mount bearings with a tapered bore onto smooth or stepped cylindrical shafts.
What are the dimensions of this adapter sleeve?: It features a 35 mm bore diameter, 36 mm width, and an M40x1.5 thread.
Which locking components are included?: The sleeve comes complete with a KM 8 lock nut and an MB 8 lock washer.
What is the taper ratio of this SKF adapter sleeve?: The taper ratio of the SKF H 308 is 1:12.
