What shaft diameter is this adapter sleeve designed for?

The SKF H 2332 is designed for plain or stepped metric shafts with a 140 mm diameter.

Are the lock nut and lock washer included?

Yes, this adapter sleeve comes complete with a KM 32 lock nut and an MB 32 lock washer.

What is the thread size of this adapter sleeve?

The external thread for the lock nut is metric M160x3.

What is the total width of the adapter sleeve?

The overall width of the SKF H 2332 is 147 mm.

What is the primary function of an SKF adapter sleeve?

It is used to securely and accurately locate bearings with a tapered bore onto cylindrical shafts.

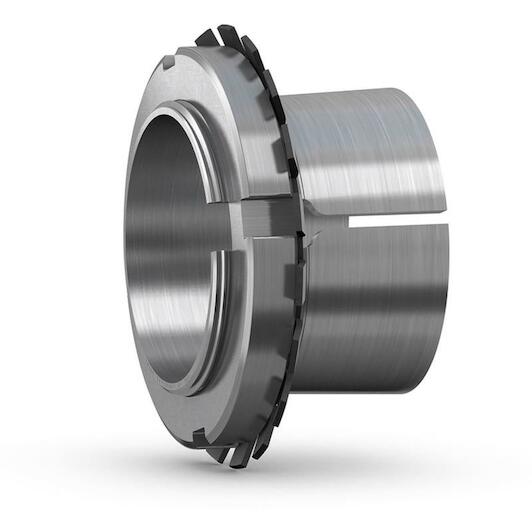

SKF H 2332 Bushing for metric axles 140 x 147 mm M160x3

Supplier number: SKF H 2332 | EAN 7316577008824

Recommended Retail Price €1,252.97

620.20 tax incl.

€512.56 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered as of 10/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable bearing mounting with Skf sleeves

Practical benefits

Easy and secure mounting: You mount tapered bore bearings accurately and firmly onto smooth or stepped cylindrical shafts with minimal effort.
Complete positive locking mechanism: The included KM lock nut and MB lock washer keep the assembly securely locked against operational loosening.
Precise metric fit dimensions: Designed with a 140 mm bore and M160X3 thread, you achieve a stable and play-free bearing seating.

In a nutshell

The right choise for

With the Skf h 2332 adapter sleeve, you mount tapered bore bearings securely and accurately onto smooth or stepped cylindrical shafts with a 140 mm diameter. You achieve a stable, play-free seat without requiring additional shaft machining, making it ideal for industrial maintenance and overhauls of heavy drive trains, pumps, fans, and conveyors. Featuring an overall width of 147 mm and an M160X3 thread, it allows you to adjust internal bearing clearance with precision during installation. Supplied complete with a km 32 lock nut and an mb 32 lock washer, this sleeve ensures positive axial locking that prevents loosening under heavy operational loads.

Product information FAQ

€620.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 140 mm
Width: 147 mm
Thread size*: M160 x 3

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

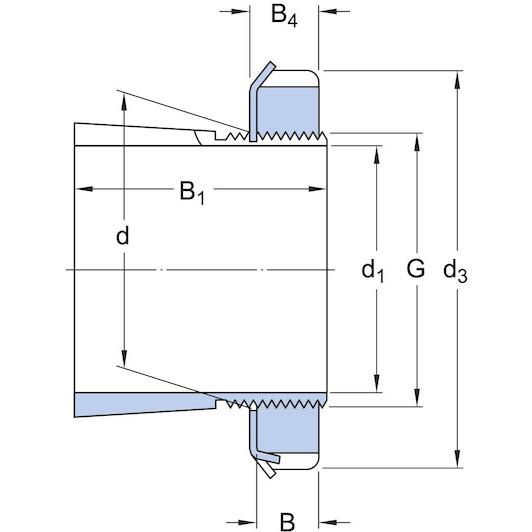

All Features

Inner diameter: 140 mm
Width: 147 mm
Thread size*: M160 x 3
Bore diameter: 140
Taper: 1:12
Holes for oil injection: Without
Thread designation: M160x3

Brand SKF
01230558
EAN 7316577008824
Supplier number SKF H 2332

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this adapter sleeve designed for?: The SKF H 2332 is designed for plain or stepped metric shafts with a 140 mm diameter.
Are the lock nut and lock washer included?: Yes, this adapter sleeve comes complete with a KM 32 lock nut and an MB 32 lock washer.
What is the thread size of this adapter sleeve?: The external thread for the lock nut is metric M160x3.
What is the total width of the adapter sleeve?: The overall width of the SKF H 2332 is 147 mm.
What is the primary function of an SKF adapter sleeve?: It is used to securely and accurately locate bearings with a tapered bore onto cylindrical shafts.
