What is the SKF H 2324 adapter sleeve used for?

It is used to mount bearings with a tapered bore onto smooth or stepped cylindrical shafts.

What shaft size does this adapter sleeve fit?

This adapter sleeve has a 110 mm bore diameter and fits metric shafts measuring 110 mm.

What is the thread size of this adapter sleeve?

The sleeve features an M120x2 thread and has an overall width of 112 mm.

Are the locking components included?

Yes, it comes complete with a KM lock nut and an MB lock washer.

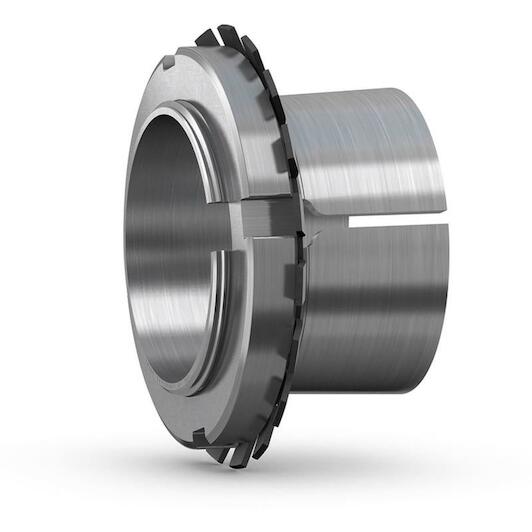

SKF H 2324 Bushing for metric axles 110 x 112 mm M120x2

Supplier number: SKF H 2324 | EAN 7316577008787

Recommended Retail Price €561.15

277.80 tax incl.

€229.59 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Secure bearing mounting with the Skf H 2324 adapter sleeve

Practical benefits

Easy mounting on shafts: You locate bearings with a tapered bore smoothly onto plain or stepped cylindrical shafts of 110 mm diameter.
Complete and reliable locking: Supplied with a KM lock nut and MB lock washer, you firmly lock the bearing assembly in place against loosening.
Precise internal clearance setting: The M120X2 thread and 112 mm width allow you to adjust bearing clearance accurately for optimal machine operation.

In a nutshell

The right choise for

With the Skf h 2324 adapter sleeve, you mount tapered bore bearings smoothly and securely onto 110 mm cylindrical shafts. Ideal for industrial machinery maintenance and heavy conveying systems, this adapter sleeve provides a firm, play-free clamping fit on plain or stepped shafts without requiring shaft machining. The supplied km lock nut and mb lock washer keep the bearing assembly locked tightly in place, preventing axial movement during operation. Featuring an M120X2 thread and a width of 112 mm, it allows you to adjust internal bearing clearance with accuracy to keep your equipment running smoothly.

Product information FAQ

€277.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 110 mm
Width: 112 mm
Thread size*: M120 x 2

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 110 mm
Width: 112 mm
Thread size*: M120 x 2
Bore diameter: 110
Taper: 1:12
Holes for oil injection: Without
Thread designation: M120x2

Brand SKF
01230554
EAN 7316577008787
Supplier number SKF H 2324

Frequently asked questions about this product

Answered by specialists

What is the SKF H 2324 adapter sleeve used for?: It is used to mount bearings with a tapered bore onto smooth or stepped cylindrical shafts.
What shaft size does this adapter sleeve fit?: This adapter sleeve has a 110 mm bore diameter and fits metric shafts measuring 110 mm.
What is the thread size of this adapter sleeve?: The sleeve features an M120x2 thread and has an overall width of 112 mm.
Are the locking components included?: Yes, it comes complete with a KM lock nut and an MB lock washer.
