SKF

SKF GEH 45 ES-2RS joint bearing 45 x 75 x 43 mm

Recommended Retail Price €207.20
102.40 tax incl.
€84.63 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

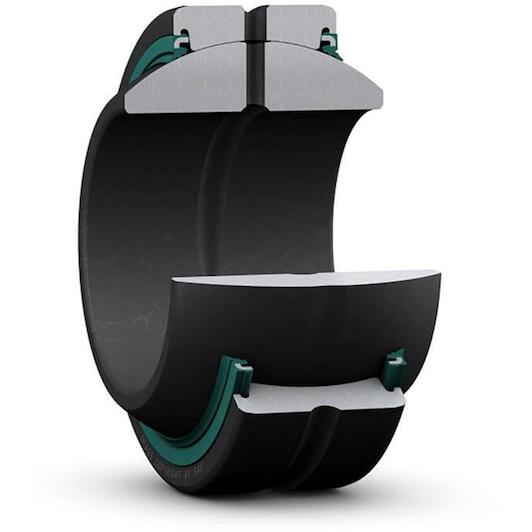

These radial spherical plain bearings have a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings. Compared to the GE series, they have a wider inner ring and a larger outside diameter, which enable higher load ratings and larger tilt angles.

  • Designed for radial and combined radial and axial loads
  • Long service life
  • Minimal maintenance
  • Suitable for heavy static, alternating or impact loads
  • Enable larger tilt angles
Key features according to our expert
  • Inner diameter: 45 mm
  • Width: 43 mm
  • Seal (bearing): Double-sided sealed
  • Radial clearance: CN (Normal)
  • Maintenance free: Nein
  • Outer diameter: 75 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577003249
  • Supplier number: SKF GEH 45 ES-2RS
Inner diameter
45 mm
Width
43 mm
Seal (bearing)
Double-sided sealed
Radial clearance
CN (Normal)
Maintenance free
Nein
Outer diameter
75 mm
Material, inner ring
Bearing steel
Maintenance
Relubrication required
Material, outer ring
Bearing steel
Sealing type
Double-lip
Width, outer ring
28
Relubrication feature
With
Basic static load rating
780
Radial internal clearance
CN
Basic dynamic load rating
156
Sealing
Seal on both sides
Width, inner ring
43
Bore diameter
45
Outside diameter
75
Sliding contact surface combination
Steel/steel, standard
