SKF SIR 35 ES Rod head with female thread 35 mm, M 28x1.5

Recommended Retail Price €614.18

303.95 tax incl.

€251.20 excl. VAT (incl. all environmental contributions)

SKF SIR 35 ES Rod head with female thread 35 mm, M 28x1.5

€303.95 Recommended Retail Price €614.18

On order: delivered from 01/06/2026

each

Ordered before 20:00 - delivered as of 01/06/2026
Free shipping
Delivery by DHL

Product information
Additional info

Product description

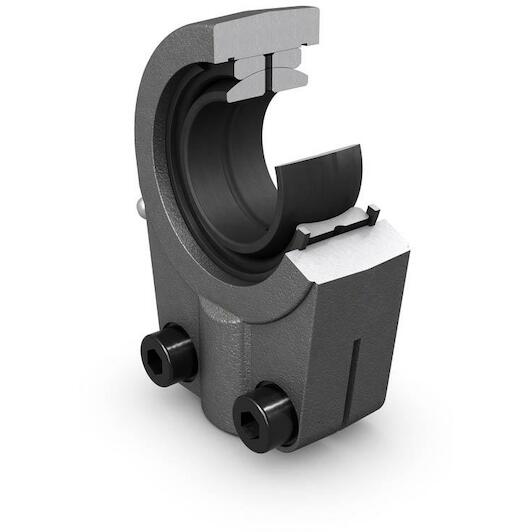

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via grease fitting in the housing and via the shaft. The female thread is available with a left- (prefix SIL) or right-hand thread.

Easy to relubricate
Suitable for heavy static, alternating or impact loads
Simple and ready-to-mount

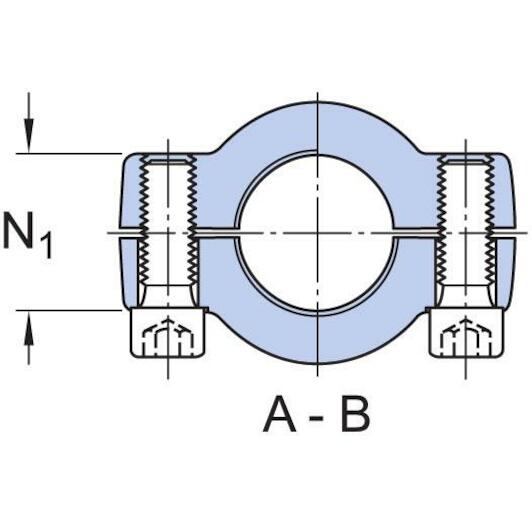

Slotted shank with clamping screws
Suitable for hydraulic cylinders
Bearing can be exchanged

Key features according to our expert

Inner diameter: 35 mm
Connection type: Inner thread
Thread type: Metric fine
Seal (bearing): Without seal
Maintenance free: Nein
Connection size: M28 x 1,5

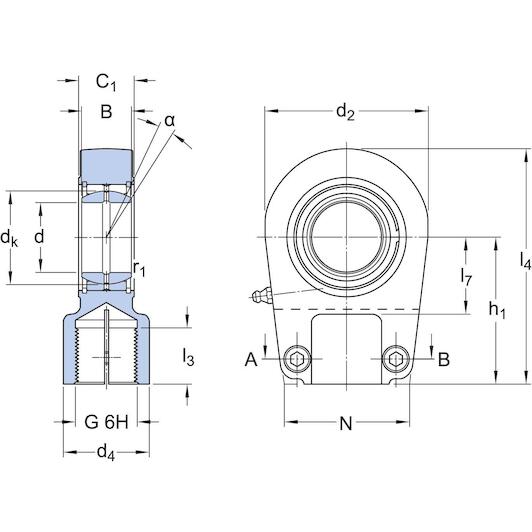

Specifications / All features

Brand: SKF
01390472
EAN: 7316577003652
Supplier number: SKF SIR 35 ES

Inner diameter: 35 mm
Connection type: Inner thread
Thread type: Metric fine
Seal (bearing): Without seal
Maintenance free: Nein
Connection size: M28 x 1,5
Bore diameter, bearing inner ring: 35
Attachment feature, rod end shank: Right-hand female thread and clamping screws
Material, housing: Steel
Sliding contact surface combination: Steel/steel, standard
Housing length, total: 113
Maintenance: Relubrication required
Thread designation: M 28x1.5
Material, outer ring: Bearing steel
Outside diameter, housing eye: 80
Sealing: Without
Basic static load rating: 118
Material, inner ring: Bearing steel
Width, bearing inner ring: 25
Width, housing eye: 30.5
Basic dynamic load rating: 80
Centre height, housing (from end of shank): 70
