SKF

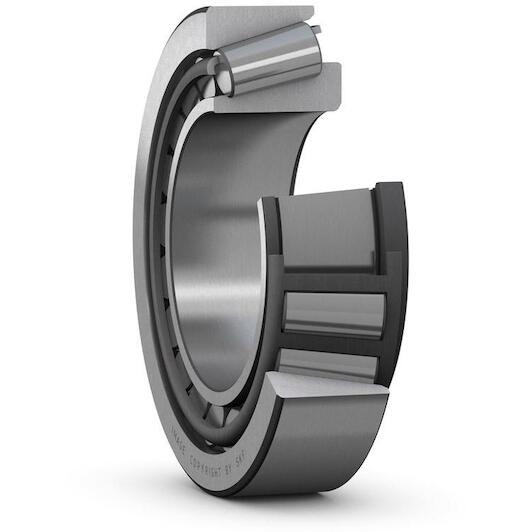

SKF D-41251 DJ2 single-row tapered roller bearing 180 x 280 x 50 mm with contact angle 11°

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 180 mm
  • Width: 50 mm
  • Number of rows: 1
  • Outer diameter: 280 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570645958
  • Supplier number: SKF D-41251 DJ2
Inner diameter
180 mm
Width
50 mm
Number of rows
1
Outer diameter
280 mm
Width, total
50 mm
Cage
Sheet metal
Width, outer ring
40 mm
Lubricant
None
Reference speed
1,600 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
815.00000041739 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Contact angle
11.083333333361 °
Width, inner ring
47 mm
Limiting speed
2,200 r/min
Bore diameter
180 mm
Basic dynamic load rating
473.00000024224 kN
Coating
Without
Outside diameter
280 mm
Bore type
Cylindrical
