What are the dimensions of this tapered roller bearing?

The bearing has a 20 mm bore, a 42 mm outer diameter, and a total width of 15 mm.

What types of loads can the SKF 32004 X/Q support?

This single row tapered roller bearing is designed to handle combined radial and axial loads in one direction.

Are the inner and outer rings separable?

Yes, the inner ring with roller assembly and the outer ring are separable for easier mounting.

How do you support axial loads in both directions?

Mount a second single row tapered roller bearing in opposition to handle axial forces in both directions.

What is the contact angle of this bearing?

This model features a 14-degree contact angle.

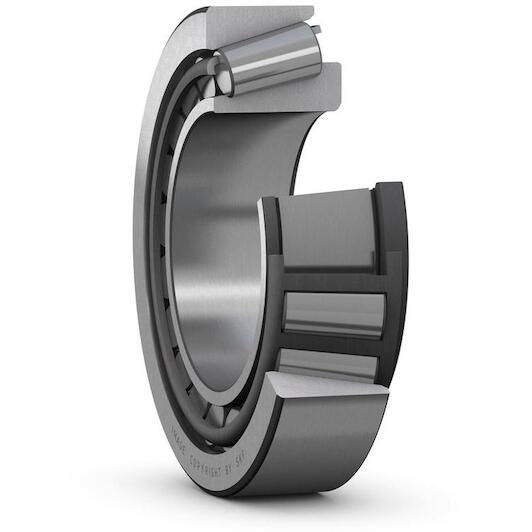

SKF 32004 X/Q single-row tapered roller bearing 20 x 42 x 15 mm with contact angle 14° - 32004 X

Supplier number: SKF 32004 X | EAN 7316577005595

Recommended Retail Price €36.03

17.80 tax incl.

€14.71 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable load handling with Skf

Practical benefits

High combined load capacity: You support both heavy radial and axial loads simultaneously for smooth power transmission in tough machinery.
Low friction operation: The refined raceway geometry minimizes running friction and operating heat, extending your overall service intervals.
Simple separable mounting: Because the inner and outer rings separate completely, you achieve quick and accurate mounting during maintenance.

In a nutshell

The right choise for

With the Skf 32004 X/Q single row tapered roller bearing, you reliably handle high combined radial and axial loads in one direction. Featuring a 20 mm bore, 42 mm outer diameter, 15 mm width, and a 14° contact angle, it maintains precise shaft alignment and high rigidity in industrial gearboxes, transmissions, and vehicle axles. The refined raceway geometry significantly minimizes rotational friction and operating heat. Because the inner and outer rings are completely separable, you can mount and inspect each component quickly and independently during maintenance.

Product information FAQ

€17.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Number of rows: 1
Outer diameter: 42 mm
Width: 15 mm

Product description

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Number of rows: 1
Outer diameter: 42 mm
Width: 15 mm
Bore type: Cylindrical
Cage: Sheet metal
Width, outer ring: 12
Lubricant: None
Arrangement of contact angle (double-row bearing): Not applicable
Reference speed: 13000
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 27
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Skf performance class: SKF Explorer
Width, inner ring: 15
Width, total: 15
Contact angle: 14.000000000035
Limiting speed: 16000
Bore diameter: 20
Basic dynamic load rating: 29.7
Coating: Without
Outer diameter: 42
Unit system: Metric

Brand SKF
01110186
EAN 7316577005595
Supplier number SKF 32004 X

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this tapered roller bearing?: The bearing has a 20 mm bore, a 42 mm outer diameter, and a total width of 15 mm.
What types of loads can the SKF 32004 X/Q support?: This single row tapered roller bearing is designed to handle combined radial and axial loads in one direction.
Are the inner and outer rings separable?: Yes, the inner ring with roller assembly and the outer ring are separable for easier mounting.
How do you support axial loads in both directions?: Mount a second single row tapered roller bearing in opposition to handle axial forces in both directions.
What is the contact angle of this bearing?: This model features a 14-degree contact angle.
