SKF BTW 70 CTN9/SP super-precision double-row angular contact ball bearing 70 x 110 x 48 mm

Recommended Retail Price €2,935.07

1,452.95 tax incl.

€1,200.79 excl. VAT (incl. all environmental contributions)

SKF BTW 70 CTN9/SP super-precision double-row angular contact ball bearing 70 x 110 x 48 mm

€1,452.95 Recommended Retail Price €2,935.07

On order: delivered from 28/05/2026

each

Ordered before 20:00 - delivered as of 28/05/2026
Free shipping
Delivery by DHL

Product information
Additional info

Product description

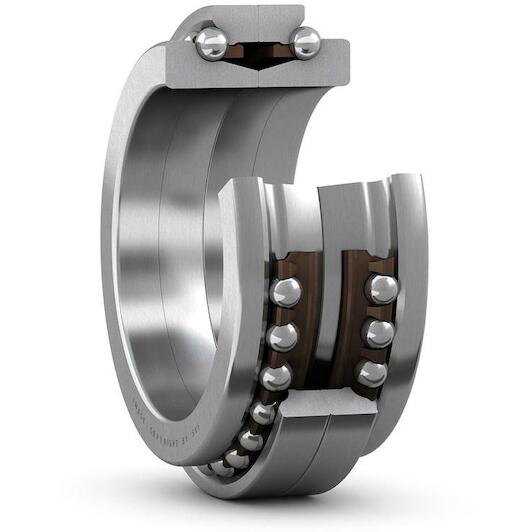

These double direction angular contact thrust ball bearings consist of two single row angular contact thrust ball bearings, arranged back-to-back. They accommodate high axial loads in both directions and provide a high degree of system rigidity.

Accommodate axial loads in both directions
Maximum system rigidity
Separable

Key features according to our expert

Inner diameter: 70 mm
Width: 48 mm
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 110 mm

Specifications / All features

Brand: SKF
01130296
EAN: 7316574830466
Supplier number: SKF BTW 70 CTN9/SP

Inner diameter: 70 mm
Width: 48 mm
Seal (bearing): Without seal
Material (bearing seal): Not applicable
Outer diameter: 110 mm
Contact angle: 60
Material, bearing: Bearing steel
Cage: Non-metallic
Design: Basic (BTW series)
Lubricant: None
Relubrication feature: Without
Basic static load rating: 112
Tolerance class: SP
Locating feature, bearing outer ring: None
Sealing: Without
Attainable speed for oil-air lubrication: 8000
Bore diameter: 70
Housing washer type (double-row angular contact thrust ball bearings): Two-piece
Axial load capability: Double-direction
Number of rows: 2
Basic dynamic load rating: 39
Coating: Without
Height: 48
Outside diameter: 110
Attainable speed for grease lubrication: 6700
