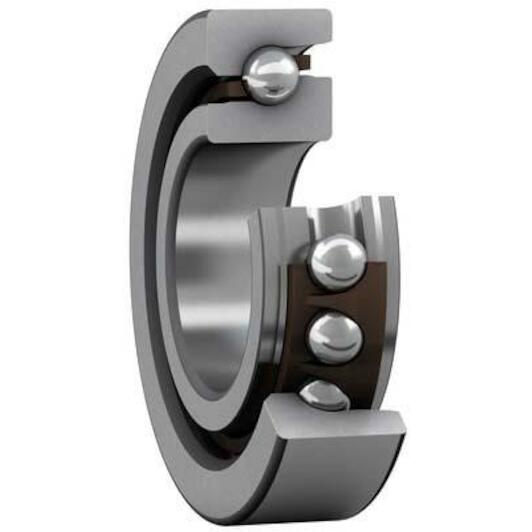

SKF BSD 60120 CGA angular contact ball bearing single acting 60 mm

SKF
Supplier number: SKF BSD 60120 CGA | EAN 7316572855041
Recommended Retail Price €1,801.16
891.60 tax incl.
€736.86 excl. VAT (incl. all environmental contributions)
On order: delivered from 19/10/2026

  • Ordered before 20:00 - delivered as of 19/10/2026
  • Free shipping
  • Delivery by DHL
✆ Talk to a specialist


Product information
€891.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 60 mm
  • Width: 20 mm
  • Number of rows: 1
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Outer diameter: 120 mm

Product description

These super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. They provide a high degree of axial stiffness and can accommodate heavy axial loads in one direction, high speeds and rapid accelerations.

  • Very high running accuracy
  • High axial stiffness
  • High axial load carrying capacity in one direction
  • Universally matchable
  • Well suited for screw drive applications

All Features

Inner diameter
60 mm
Width
20 mm
Number of rows
1
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Outer diameter
120 mm
Axial load capability
Single-direction
Material, bearing
Bearing steel
Cage
Non-metallic
Relubrication feature
Without
Basic static load rating
228
Tolerance class
Special
Locating feature, bearing outer ring
None
Sealing
Without
Attainable speed for oil-air lubrication
6000
Contact angle
62
Basic dynamic load rating
69.5
Bore diameter
60
Coating
Without
Height
20
Outer diameter
120
Attainable speed for grease lubrication
5000
  • Brand SKF
  • EAN 7316572855041
  • Supplier number SKF BSD 60120 CGA
