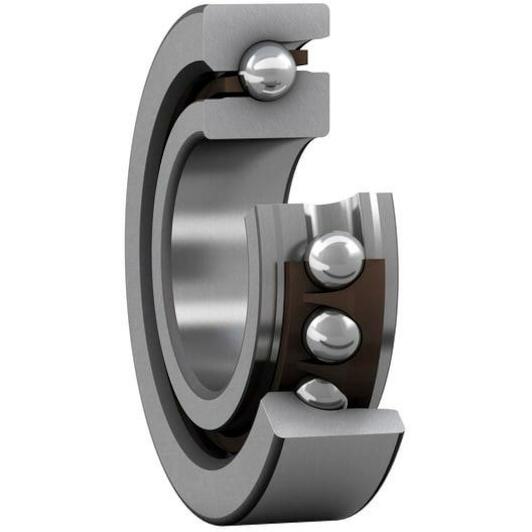

SKF BSD 50100 CGB super-precision single-row angular contact ball bearing single acting 50 x 100 x 20 mm

Supplier number: SKF BSD 50100 CGB | EAN 7316570952889
Recommended Retail Price €1,126.64
557.60 tax incl.
€460.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Ordered before 20:00 - delivered as of 21/10/2026
  • Free shipping
  • Delivery by DHL


€557.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 50 mm
  • Width: 20 mm
  • Number of rows: 1
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Outer diameter: 100 mm

Product description

These super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. They provide a high degree of axial stiffness and can accommodate heavy axial loads in one direction, high speeds and rapid accelerations.

  • Very high running accuracy
  • High axial stiffness
  • High axial load carrying capacity in one direction
  • Universally matchable
  • Well suited for screw drive applications

Documents

All Features

Inner diameter
50 mm
Width
20 mm
Number of rows
1
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Outer diameter
100 mm
Axial load capability
Single-direction
Material, bearing
Bearing steel
Cage
Non-metallic
Relubrication feature
Without
Basic static load rating
193
Tolerance class
Special
Locating feature, bearing outer ring
None
Sealing
Without
Attainable speed for oil-air lubrication
6700
Contact angle
62
Basic dynamic load rating
67
Bore diameter
50
Coating
Without
Height
20
Outer diameter
100
Attainable speed for grease lubrication
5600
  • Brand SKF
  • EAN 7316570952889
  • Supplier number SKF BSD 50100 CGB
