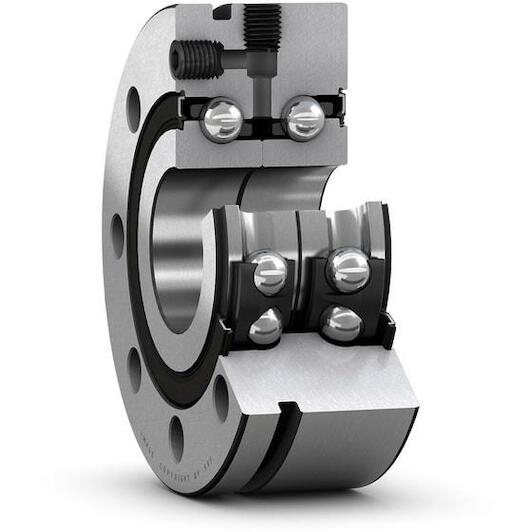

SKF BEAM 020068 C-2RSH/PE double direction angular contact ball bearing for spindle drives, for bolt-on mounting

Supplier number: SKF BEAM 020068 C-2RSH/PE | EAN 7316577885104

Recommended Retail Price €1,208.75

598.40 tax incl.

€494.55 excl. VAT (incl. all environmental contributions)

On order: delivered from 19/10/2026

Ordered before 20:00 - delivered as of 19/10/2026
Free shipping
Delivery by DHL

✆ Talk to a specialist

Product information

€598.40

tax incl.

Key features according to our expert

Sealing (bearing): Sealed on both sides

Product description

These double direction angular contact thrust ball bearings are well suited for screw drive applications, but are also beneficial in other applications, where reliable radial and axial support is required, together with extremely precise axial guidance of the shaft. The BEAM series bearings have an outer ring that is much thicker than with the BEAS series, and they are equipped with through holes for attachment bolts, which makes the mounting process simple.

Accommodate radial loads, and axial loads in both directions
Greased and sealed as standard
Ready to mount
Easy to relubricate

All Features

Sealing (bearing): Sealed on both sides
Axial load capability: Double-direction
Housing washer type (double-row angular contact thrust ball bearings): One-piece
Sealing: Seal on both sides
Locating feature, bearing outer ring: Bolt holes
Relubrication feature: With
Lubricant: Grease
Sealing type: Contact
Cage: Non-metallic
Single bearing, universally matchable, delivered individually: No
