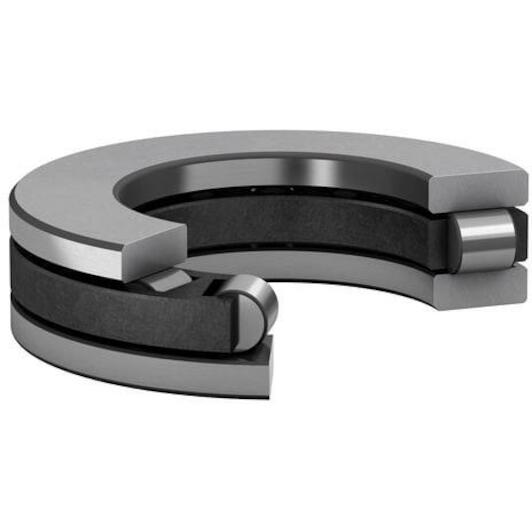

SKF 81106 TN single-row cylindrical roller bearing single acting 30 x 47 mm

Supplier number: SKF 81106 TN | EAN 7316571160979

Recommended Retail Price €114.90

56.80 tax incl.

€46.94 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable axial support in compact spaces

Practical benefits

High axial load capacity: You handle heavy single-direction thrust and peak loads effortlessly with high operational stiffness.
Separable Skf 81106 TN: The separable design with a polyamide cage makes mounting and component interchange fast and simple.
Space-saving 11 mm profile: You create rigid bearing assemblies with minimal axial space requirements in demanding machinery.

In a nutshell

The right choise for

With the Skf 81106 tn cylindrical roller thrust bearing, you handle heavy single-direction axial loads and peak forces with ease. When standard thrust ball bearings lack sufficient load capacity, this single-row bearing delivers the high stiffness required for demanding spindles, rotary tables, and drive systems. Featuring a 30 mm bore, a 47 mm outside diameter, and an 11 mm height, it fits perfectly into assemblies with limited axial space. The lightweight polyamide cage ensures smooth roller guidance, while the separable design makes mounting and maintenance fast and straightforward. Keep your industrial machinery running strong and reliably.

Product information FAQ

€56.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 11 mm
Number of rows: 1
Material (cage): Plastic
Outer diameter: 47 mm

Product description

Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High axial load carrying capacity
High stiffness
Long service life
Require little axial space
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 11 mm
Number of rows: 1
Material (cage): Plastic
Outer diameter: 47 mm
Bore diameter: 30
Cage: Non-metallic
Reference speed: 3000
Basic static load rating: 78
Tolerance class: Normal
Bearing part: Complete bearing
Limiting speed: 6000
Axial load capability: Single-direction
Coating: Without
Basic dynamic load rating: 27
Height: 11
Outside diameter: 47
Material, bearing: Bearing steel

Brand SKF
01293410
EAN 7316571160979
Supplier number SKF 81106 TN

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF thrust bearing?: This bearing has an inside diameter of 30 mm, an outside diameter of 47 mm, and an overall height of 11 mm.
What types of loads can this cylindrical roller thrust bearing handle?: It is designed to accommodate heavy axial loads in one direction only. It cannot accommodate radial loads.
What does the TN suffix mean on this bearing?: The TN suffix indicates that the bearing cage is made from glass fibre reinforced polyamide (plastic).
Is this SKF bearing separable?: Yes, its separable design makes mounting easier by allowing individual washers and the roller cage to be mounted separately.
Why choose a cylindrical roller thrust bearing over a ball thrust bearing?: It is suitable for applications where thrust ball bearings lack sufficient load carrying capacity and higher rigidity is needed.
