SKF

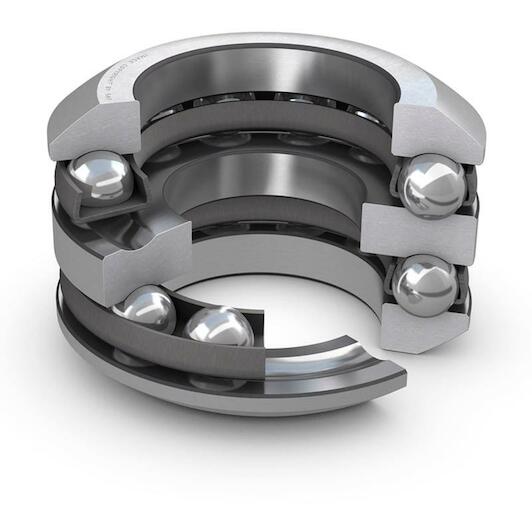

SKF 54307 double-sided roller bearing 30x68 mm

Recommended Retail Price €422.23
208.95 tax incl.
€172.69 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 1 products in stock.
each

  • Ordered before 20:00 - delivered as of 15/05/2026
  • Free shipping
  • Delivery by DHL

Product description:

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 47,2 mm
  • Number of rows: 2
  • Material (cage): Brass (sheet)
  • Outer diameter: 68 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576678226
  • Supplier number: SKF 54307
Inner diameter
30 mm
Width
47,2 mm
Number of rows
2
Material (cage)
Brass (sheet)
Outer diameter
68 mm
Bore diameter
30 mm
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
2,400 r/min
Basic static load rating
96.5 kN
Tolerance class
Normal
Limiting speed
3,400 r/min
Axial load capability
Double-direction
Coating
Without
Basic dynamic load rating
49.4 kN
Thickness
47.2 mm
Outside diameter
68 mm

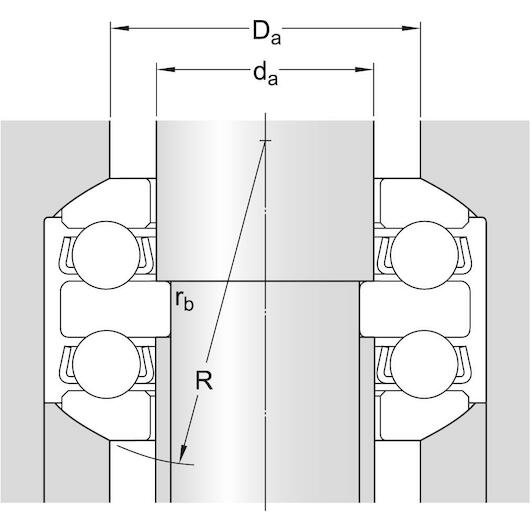

Radius of aligning surface
56 mm
