SKF

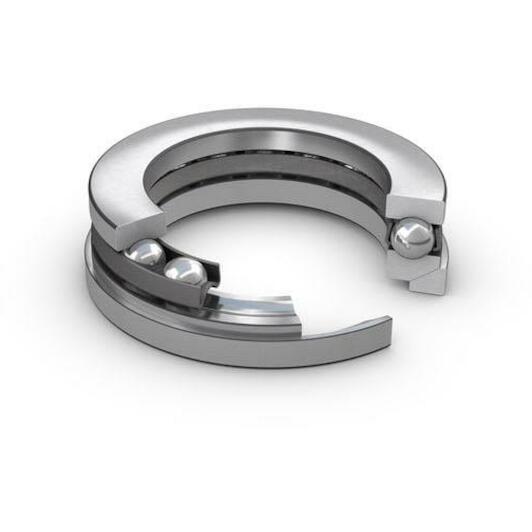

SKF 53318 ball roller bearing single acting 90x155 mm

This article is not available

Product description:

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert
  • Inner diameter: 90 mm
  • Width: 54,6 mm
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 155 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577007483
  • Supplier number: SKF 53318
Inner diameter
90 mm
Width
54,6 mm
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
155 mm
Bore diameter
90 mm
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
1,400 r/min
Basic static load rating
440 kN
Tolerance class
Normal
Limiting speed
2,000 r/min
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
182 kN
Thickness
54.6 mm
Outside diameter
155 mm
Radius of aligning surface
112 mm
