SKF

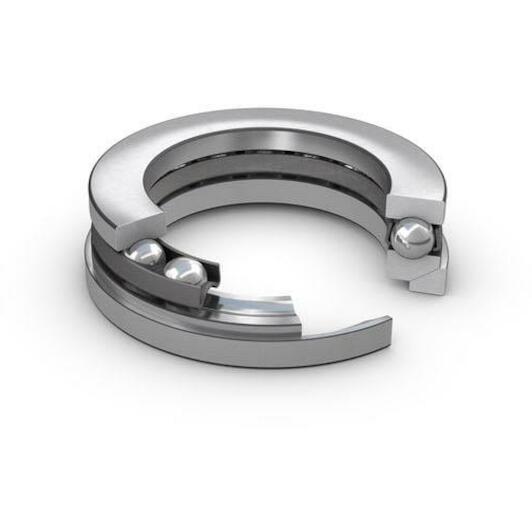

SKF 53317 ball roller bearing single acting 85x150 mm

This article is not available

Product description:

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert

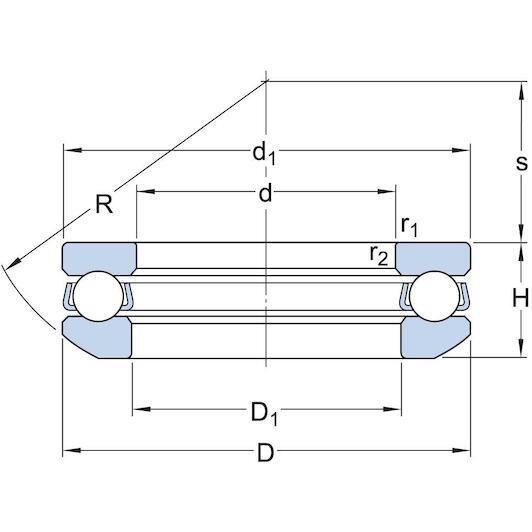

  • Inner diameter: 85 mm
  • Width: 53,1 mm
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 150 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577121417
  • Supplier number: SKF 53317
Inner diameter
85 mm
Width
53,1 mm
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
150 mm
Bore diameter
85 mm
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
1,500 r/min
Basic static load rating
405 kN
Tolerance class
Normal
Limiting speed
2,000 r/min
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
174 kN
Thickness
53.1 mm
Outside diameter
150 mm
Radius of aligning surface
112 mm
