SKF

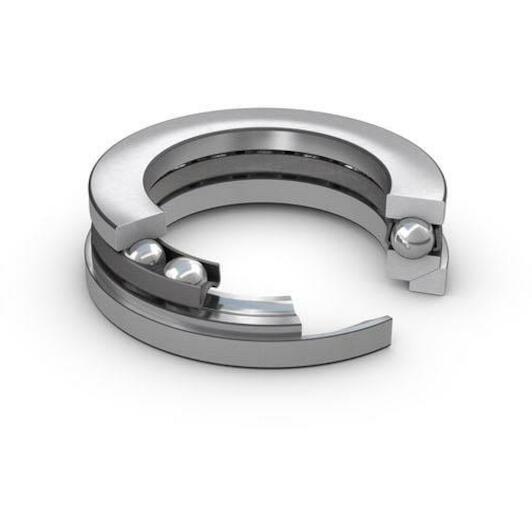

SKF 53313 ball roller bearing single acting 65x115 mm

Recommended Retail Price €709.56
351.20 tax incl.
€290.25 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.

Avantages

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enables interference fit
  • Sphered housing washers can accommodate initial misalignment
Key features according to our expert
  • Inner diameter: 65 mm
  • Width: 39,4 mm
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 115 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577121400
  • Supplier number: SKF 53313
Inner diameter
65 mm
Width
39,4 mm
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
115 mm
Bore diameter
65
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
2000
Basic static load rating
240
Tolerance class
Normal
Limiting speed
2800
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
106
Height
39.4
Outside diameter
115
Radius of aligning surface
90
