SKF

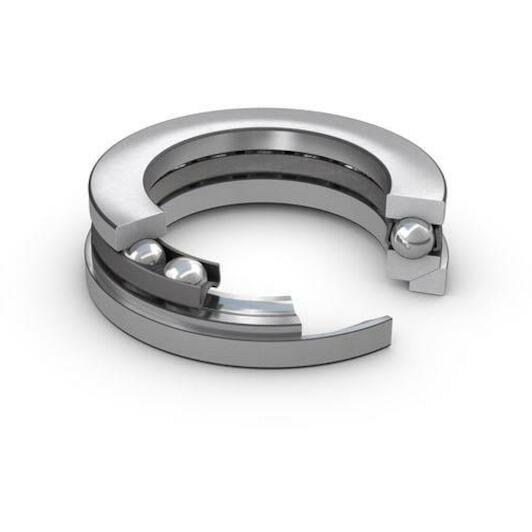

SKF 53202 ball roller bearing single acting 15x32 mm

Recommended Retail Price €98.88
48.80 tax incl.
€40.33 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL

Product description

  • Single direction thrust ball bearings, with sphered housing washer, can accommodate axial loads in one direction. They must not be subjected to any radial load. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit. The sphered housing washers can accommodate initial misalignment when configured correctly with a sphered seat washer or a machine component with a sphered surface.

Avantages

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enables interference fit
  • Sphered housing washers can accommodate initial misalignment
Key features according to our expert
  • Inner diameter: 15 mm
  • Width: 13,3 mm
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 32 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577007247
  • Supplier number: SKF 53202
Inner diameter
15 mm
Width
13,3 mm
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
32 mm
Bore diameter
15
Material, bearing
Bearing steel
Cage
Sheet metal
Housing washer type
Sphered
Reference speed
7000
Basic static load rating
25
Tolerance class
Normal
Limiting speed
10000
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
15.9
Height
13.3
Outside diameter
32
Radius of aligning surface
28
