SKF

SKF 51238 M ball roller bearing single acting 190x270 mm

This article is not available

Product description:

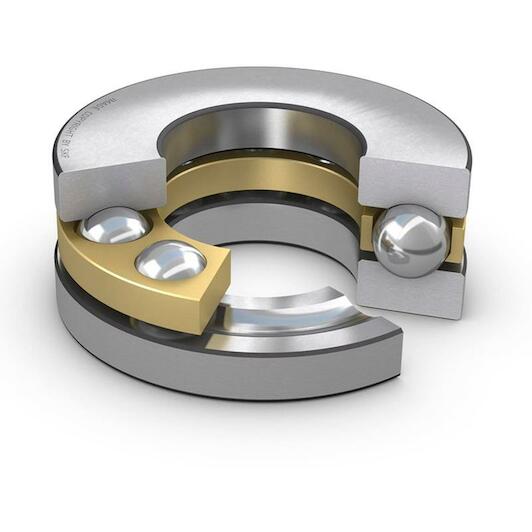

  • Single-sided ball thrust bearings consist of a shaft ring, a housing ring and a cage with balls
  • The bearings are removable so that the ring and ball cage can easily be fitted separately
  • Single-sided spherical roller bearings, as their name suggests , can take axial loads in one direction and thus trap a shaft in one direction
  • They may not be subjected to radial loads
Key features according to our expert
  • Inner diameter: 190 mm
  • Width: 62 mm
  • Number of rows: 1
  • Material (cage): Brass (solid)
  • Outer diameter: 270 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577121141
  • Supplier number: SKF 51238 M
Inner diameter
190 mm
Width
62 mm
Number of rows
1
Material (cage)
Brass (solid)
Outer diameter
270 mm
Bore diameter
190 mm
Cage
Machined metal
Housing washer type
Flat
Reference speed
1,000 r/min
Basic static load rating
1,250 kN
Tolerance class
Normal
Limiting speed
1,400 r/min
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
338 kN
Thickness
62 mm
Outside diameter
270 mm
Material, bearing
Bearing steel
