SKF

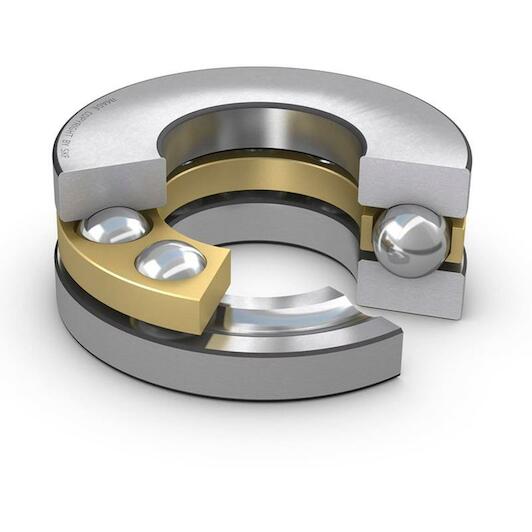

SKF 51232 M ball roller bearing single acting 160x225 mm

Recommended Retail Price €2,595.12
1,284.80 tax incl.
€1,061.82 excl. VAT (incl. all environmental contributions)
On order: delivered from 29/05/2026
each

  • Ordered before 20:00 - delivered as of 29/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Single direction thrust ball bearings can accommodate axial loads in one direction. They must not be subjected to any radial load. Their separable components facilitate mounting/dismounting and maintenance inspections. Many of the components are interchangeable. The shaft washers have a ground bore that enables an interference fit.

  • Separable design facilitates mounting/dismounting and maintenance inspections
  • Interchangeable components
  • Ground bore of shaft washers enable interference fit
Key features according to our expert
  • Inner diameter: 160 mm
  • Width: 51 mm
  • Number of rows: 1
  • Material (cage): Brass (solid)
  • Outer diameter: 225 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577059659
  • Supplier number: SKF 51232 M
Inner diameter
160 mm
Width
51 mm
Number of rows
1
Material (cage)
Brass (solid)
Outer diameter
225 mm
Bore diameter
160
Cage
Machined metal
Housing washer type
Flat
Reference speed
1200
Basic static load rating
800
Tolerance class
Normal
Limiting speed
1700
Axial load capability
Single-direction
Coating
Without
Basic dynamic load rating
247
Height
51
Outside diameter
225
Material, bearing
Bearing steel
