What are the dimensions of this SKF angular contact bearing?

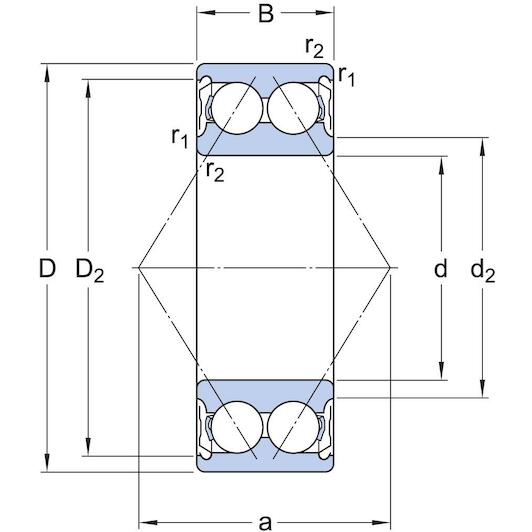

The bearing has a 25 mm bore, a 62 mm outside diameter, and a width of 25.4 mm.

What loads can this double row bearing support?

It accommodates high radial loads as well as axial loads in both directions.

What does the 2Z designation mean?

It indicates that the bearing is fitted with a metal shield on both sides.

What material is the TN9 cage made of?

The cage is made of glass-fibre reinforced polyamide.

What is the contact angle of this bearing?

This angular contact ball bearing has a 30° contact angle.

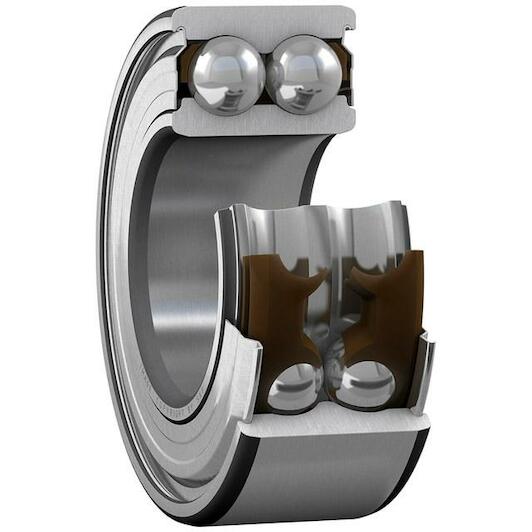

SKF 3305 A-2ZTN9/MT33 double-row angular contact ball bearing 25 x 62 x 25.4 mm with 30° contact angle

Supplier number: SKF 3305 A-2ZTN9/MT33 | EAN 7316570807530

Recommended Retail Price €211.31

104.60 tax incl.

€86.45 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 15/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Sturdy load handling by Skf

Practical benefits

Dual metal shield protection: You shield internal components against dust and contaminants with pressed sheet steel shields on both sides.
Combined dual direction support: You accommodate heavy radial forces as well as axial loads in both directions with ease.
Smooth polyamide cage: The glass fibre reinforced polymer cage ensures reduced friction and smooth, quiet rotational performance.

In a nutshell

The right choise for

With the Skf 3305 A-2ZTN9/MT33 double row angular contact ball bearing, you ensure dependable performance and rigid support within limited axial space. Featuring a 30° contact angle, it accommodates heavy radial loads alongside simultaneous bidirectional axial forces, making it an ideal choice for electric motors, pumps, and gearboxes. The dual metal 2Z shields protect the pre-lubricated MT33 interior against dust and contaminants, eliminating the need for routine maintenance. Meanwhile, the lightweight glass-fibre reinforced polyamide TN9 cage minimizes friction and ensures quiet, smooth rotation at demanding speeds.

Product information FAQ

€104.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 25 mm
Width: 25,4 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 62 mm

Product description

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

High-speed capability
Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
Suitable where a stiff bearing arrangement is required
Require less axial space than equivalent pair of single row angular contact ball bearings
Integral sealing prolongs bearing service life

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 25 mm
Width: 25,4 mm
Number of rows: 2
Axial clearance: CN (Normal)
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Material (cage): Plastic
Outer diameter: 62 mm
Relubrication feature: Without
Ring type: One-piece inner and outer rings
Contact type: Normal contact (two-point contact)
Basic static load rating: 22
Matched arrangement: No
Sealing type: Non-contact
Reference speed: 11000
Skf performance class: SKF Explorer
Lubricant: Grease
Sealing: Shield on both sides
Cage: Non-metallic
Material, bearing: Bearing steel
Locating feature, bearing outer ring: None
Bore diameter: 25
Arrangement of contact angle (double-row bearing): Back-to-back (O)
Axial internal clearance: CN
Contact angle: 30
Limiting speed: 11000
Basic dynamic load rating: 32.5
Coating: Without
Outer diameter: 62
Universal matching bearing: No

Brand SKF
01050379
EAN 7316570807530
Supplier number SKF 3305 A-2ZTN9/MT33

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF angular contact bearing?: The bearing has a 25 mm bore, a 62 mm outside diameter, and a width of 25.4 mm.
What loads can this double row bearing support?: It accommodates high radial loads as well as axial loads in both directions.
What does the 2Z designation mean?: It indicates that the bearing is fitted with a metal shield on both sides.
What material is the TN9 cage made of?: The cage is made of glass-fibre reinforced polyamide.
What is the contact angle of this bearing?: This angular contact ball bearing has a 30° contact angle.
