SKF

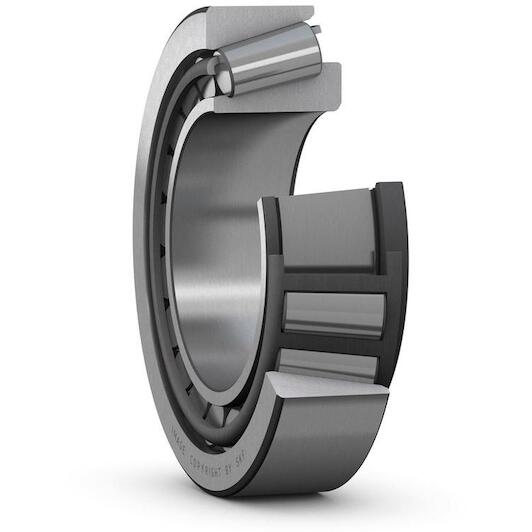

SKF 32212 J2/QVB022 single-row tapered roller bearing 60 x 110 x 29.75 mm with contact angle 15.1°

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 60 mm
  • Outer diameter: 110 mm
  • Width: 31,22 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570212563
  • Supplier number: SKF 32212 J2/QVB022
Inner diameter
60 mm
Outer diameter
110 mm
Width
31,22 mm
Cage
Sheet metal
Width, outer ring
24 mm
Lubricant
None
Reference speed
4,500 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
160 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Width, inner ring
28 mm
Width, total
29.75 mm
Contact angle
15.109444444 °
Limiting speed
6,000 r/min
Bore diameter
60 mm
Basic dynamic load rating
125 kN
Coating
Without
Outside diameter
110 mm
Bore type
Cylindrical
