SKF

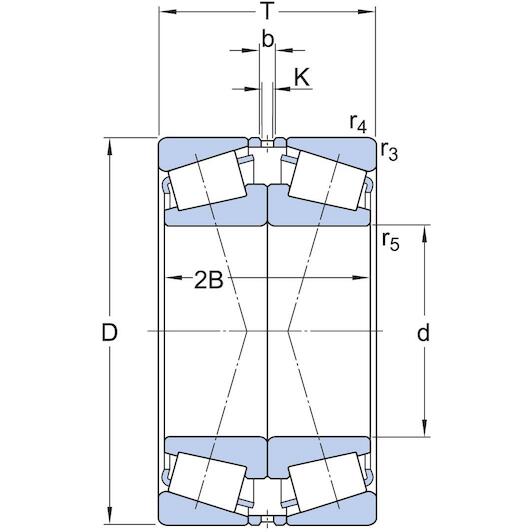

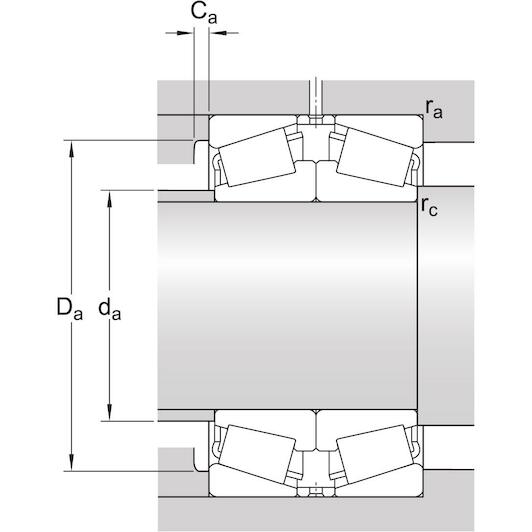

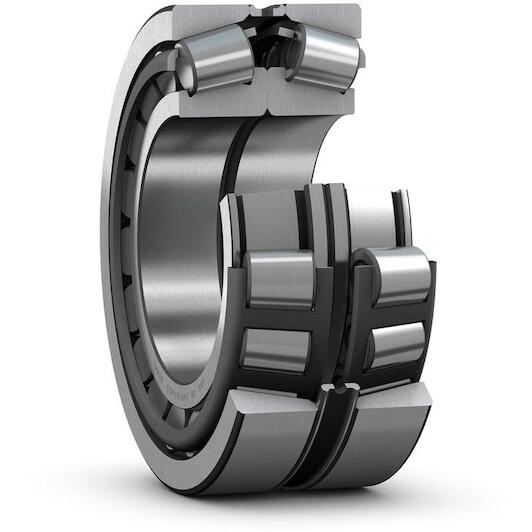

SKF 32026 X/DF paired single-row tapered roller bearing 130 x 200 x 90 mm with contact angle 16.2°

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 130 mm
  • Number of rows: 2
  • Outer diameter: 200 mm
  • Width: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571001753
  • Supplier number: SKF 32026 X/DF
Inner diameter
130 mm
Number of rows
2
Outer diameter
200 mm
Width
90 mm
Cage
Sheet metal
Width, outer ring
90 mm
Lubricant
None
Skf performance class
SKF Explorer
Arrangement of contact angle (double-row bearing)
Face-to-face (X)
Relubrication feature
With
Matched arrangement
Face-to-face (X)
Basic static load rating
1,080 kN
Number of bearings in matched set
2
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Reference speed
2,000 r/min
Width, inner ring
90 mm
Width, total
90 mm
Contact angle
16.166666666707 °
Limiting speed
3,000 r/min
Bore diameter
130 mm
Basic dynamic load rating
666 kN
Coating
Without
Outside diameter
200 mm
Bore type
Cylindrical
