What are the dimensions of this SKF cam roller?

This cam roller has a 10 mm inside diameter, a 32 mm outside diameter, and a 14 mm width.

What is the benefit of the crowned outer ring surface?

The crowned runner surface prevents edge stresses in the event of angular misalignment with the track.

What sealing does the 305800 C-2Z bearing have?

It is equipped with metal shields on both sides (2Z) to protect against dirt and debris.

What applications is this track roller suitable for?

It is designed for cam drives, conveyor systems, and linear guide arrangements on flat tracks.

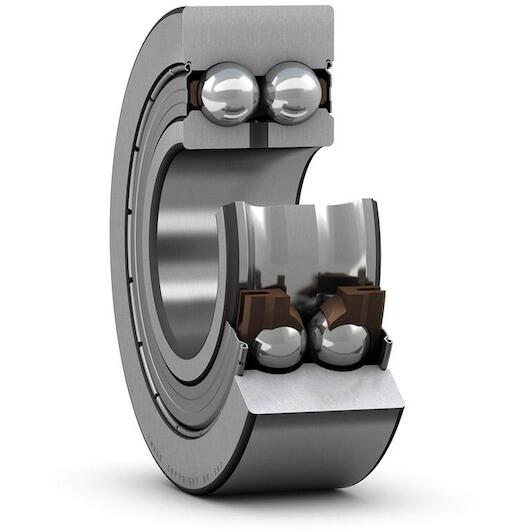

SKF 305800 C-2Z two-row cam roller (Yoke-type idler) 10 x 32 x 14 mm

Supplier number: SKF 305800 C-2Z | EAN 7316577742681

Recommended Retail Price €135.93

67.20 tax incl.

€55.54 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth tracking under heavy loads

Practical benefits

Skf 305800 C-2Z roller: You mount this compact double-row track roller easily onto shafts for precise linear motion.
Compensates for track misalignment: The crowned outer ring prevents harmful edge stresses and ensures smooth running on rails.
Effective shield against contamination: Dual metal shields keep lubricant securely inside while protecting internal rolling elements from dust.

In a nutshell

The right choise for

With the Skf 305800 C-2Z double-row cam roller, you ensure smooth and reliable motion in demanding industrial setups. The crowned outer ring profile easily compensates for angular misalignment and shaft deflection, preventing harmful edge stresses on the running track. Built with dimensions of 10 x 32 x 14 mm, this yoke-type track roller delivers high radial load capacity for cam drives, linear guides, and conveyor systems. Dual metal 2Z shields protect internal components against dust and contamination, while the integrated lubrication hole in the inner ring allows for easy relubrication and an extended service life.

Product information FAQ

€67.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 10 mm
Width: 14 mm
Number of rows: 2
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: Not applicable
Axial clearance: CN (Normal)
Outer ring profile: Spherical
Outer diameter: 32 mm

Product description

These cam rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on double row angular contact ball bearings. They have a thick-walled outer ring with a crowned running surface prevents edge stresses under skewing. They are supplied greased, sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

High radial load carrying capacity and relatively high speed capability
Accommodate tilting moments
Long service life
Ready to mount
Integral sealing, for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 10 mm
Width: 14 mm
Number of rows: 2
Sealing (bearing): Sealed on both sides
Material (bearing seal): Metal
Radial clearance: Not applicable
Axial clearance: CN (Normal)
Outer ring profile: Spherical
Outer diameter: 32 mm
Basic static load rating: 3.65
Bearing part: Complete track roller
Tolerance class: Normal (except crowned running surface)
Radial internal clearance: Not applicable
Material, bearing: Bearing steel
Relubrication feature: With
Lubricant: Grease
Sealing type: Non-contact
Cage: With
Sealing: Shield on both sides
Functional outside diameter: 32
Axial guidance of outer ring: Yes
Axial internal clearance: Normal
Limiting speed: 16000
Bore diameter: 10
Basic dynamic load rating: 7.28
Coating: Without
Rolling elements: Balls

Brand SKF
01210117
EAN 7316577742681
Supplier number SKF 305800 C-2Z

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF cam roller?: This cam roller has a 10 mm inside diameter, a 32 mm outside diameter, and a 14 mm width.
What is the benefit of the crowned outer ring surface?: The crowned runner surface prevents edge stresses in the event of angular misalignment with the track.
What sealing does the 305800 C-2Z bearing have?: It is equipped with metal shields on both sides (2Z) to protect against dirt and debris.
Can this cam roller be relubricated?: Yes, a lubrication hole in the inner ring allows for easy relubrication.
What applications is this track roller suitable for?: It is designed for cam drives, conveyor systems, and linear guide arrangements on flat tracks.
