SKF

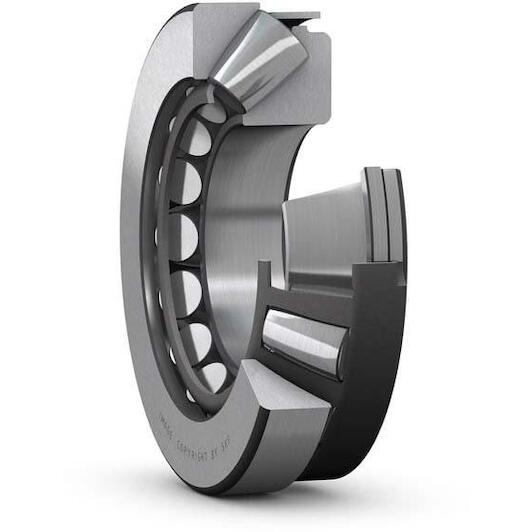

SKF 29456 E spherical roller bearing with pressed steel cage 280 mm

Recommended Retail Price €24,271.18
12,016.60 tax incl.
€9,931.07 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

  • High load carrying capacity
  • Can accommodate combined loads
  • Allow misalignment or create very stiff bearing arrangements
  • Long service life and low friction
  • Separable design

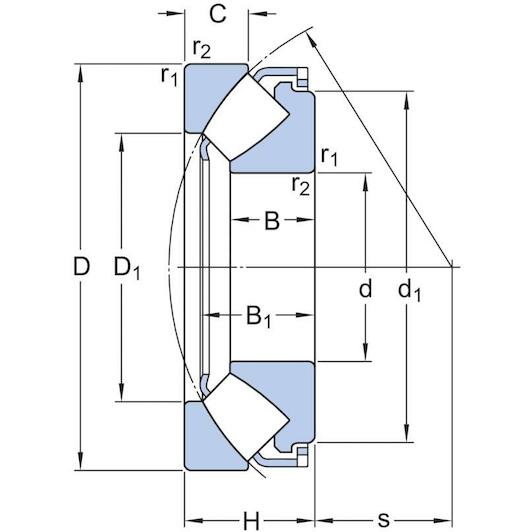

Key features according to our expert
  • Inner diameter: 280 mm
  • Width: 145 mm
  • Outer diameter: 520 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577022608
  • Supplier number: SKF 29456 E
Inner diameter
280 mm
Width
145 mm
Outer diameter
520 mm
Limiting speed
1200
Bore type
Cylindrical
Cage
Sheet metal
Skf performance class
SKF Explorer
Reference speed
670
Basic static load rating
15300
Tolerance class
Normal
Locating feature, housing washer
None
Basic dynamic load rating
4900
Bore diameter
280
Height
145
Outside diameter
520
Candidate for remanufacturing
Yes
