SKF

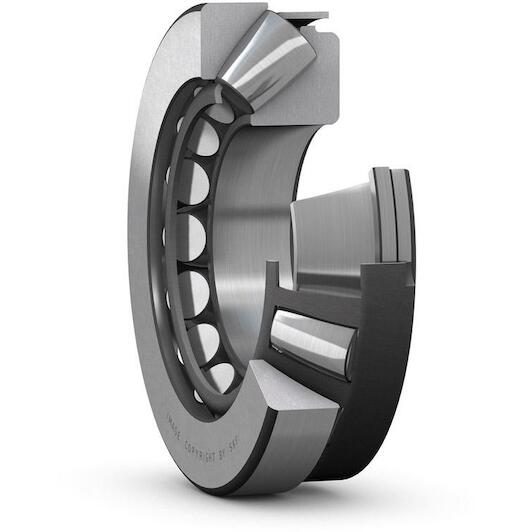

SKF 29420 E spherical roller bearing cylindrical 100 x 210 x 67 mm

Recommended Retail Price €3,382.14
1,674.40 tax incl.
€1,383.80 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Ordered before 20:00 - delivered as of 30/05/2026
  • Free shipping
  • Delivery by DHL

Product description

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

  • High load carrying capacity
  • Can accommodate combined loads
  • Allow misalignment or create very stiff bearing arrangements
  • Long service life and low friction
  • Separable design
Key features according to our expert
  • Inner diameter: 100 mm
  • Outer diameter: 210 mm
  • Width: 67 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576609077
  • Supplier number: SKF 29420 E
Inner diameter
100 mm
Outer diameter
210 mm
Width
67 mm
Cage
Sheet metal
Skf performance class
SKF Explorer
Reference speed
1700
Basic static load rating
2500
Tolerance class
Normal
Locating feature, housing washer
None
Limiting speed
3000
Basic dynamic load rating
980
Bore diameter
100
Height
67
Outside diameter
210
Bore type
Cylindrical
