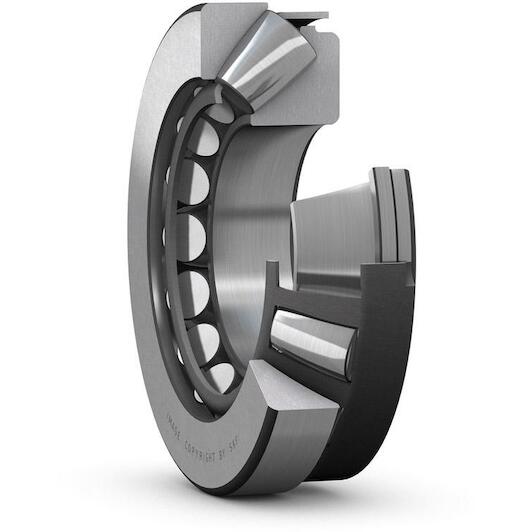

SKF 29412 E spherical roller bearing cylindrical 60 x 130 x 42 mm

Supplier number: SKF 29412 E | EAN 7316576609015

Recommended Retail Price €1,730.80

856.80 tax incl.

€708.10 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 30/09/2026
Free shipping
Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Heavy axial support with Skf

Practical benefits

High combined load capacity: You effortlessly handle very heavy axial and simultaneous radial forces thanks to the robust spherical roller geometry.
Accommodates severe shaft misalignment: The self-aligning design compensates for shaft deflections dynamically, protecting your machinery from excessive friction and wear.
Pressed steel cage durability: You achieve reliable roller guidance and long-lasting mechanical stability under demanding continuous operating conditions.

In a nutshell

The right choise for

Keep your heavy industrial machinery running reliably and smoothly with the Skf 29412 e spherical roller thrust bearing. Measuring 60 x 130 x 42 mm, this self-aligning bearing is engineered to accommodate extremely heavy unidirectional axial loads alongside simultaneous radial forces. Its spherical raceway design dynamically compensates for shaft deflections and angular misalignment, preventing excessive edge stress and premature wear. The pressed sheet steel cage ensures precise roller guidance under demanding operating conditions. This makes it an excellent choice for heavy-duty industrial gearboxes, extruders, cranes, and drilling equipment where dependable performance is essential.

Product information FAQ

€856.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Outer diameter: 130 mm
Width: 42 mm

Product description

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

High load carrying capacity
Can accommodate combined loads
Allow misalignment or create very stiff bearing arrangements
Long service life and low friction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Outer diameter: 130 mm
Width: 42 mm
Cage: Sheet metal
Skf performance class: SKF Explorer
Reference speed: 2800
Basic static load rating: 915
Tolerance class: Normal
Locating feature, housing washer: None
Limiting speed: 5000
Basic dynamic load rating: 390
Bore diameter: 60
Height: 42
Outside diameter: 130
Bore type: Cylindrical

Brand SKF
01170002
EAN 7316576609015
Supplier number SKF 29412 E

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this thrust bearing?: The bearing has a 60 mm bore diameter, a 130 mm outside diameter, and a height of 42 mm.
What types of loads can the SKF 29412 E accommodate?: It is designed for very heavy axial loads in one direction while accommodating simultaneous radial loads.
Does this bearing accommodate misalignment?: Yes, its spherical design makes it self-aligning and accommodates shaft deflections or misalignments.
What material is the cage made of?: This model is fitted with a stamped sheet steel cage.
What does the E suffix indicate in the part number?: The E suffix indicates an optimized internal design with higher load-carrying capacity.
