SKF

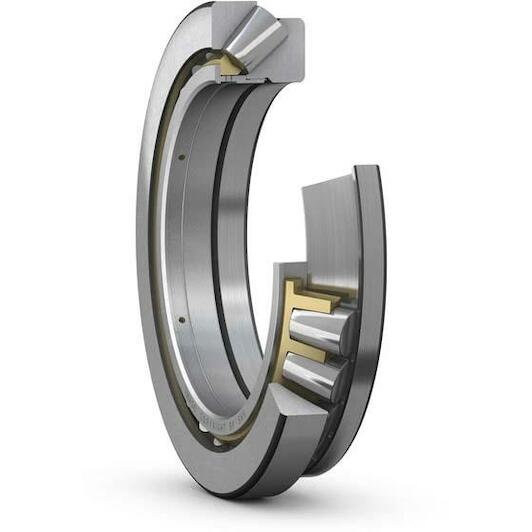

SKF 29264 spherical roller bearing with solid metal cage 320 mm

Recommended Retail Price €27,181.56
13,457.40 tax incl.
€11,121.82 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL

Product description

  • Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.

Avantages

  • High load carrying capacity
  • Can accommodate combined loads
  • Allow misalignment or create very stiff bearing arrangements
  • Long service life and low friction
  • Separable design
Key features according to our expert
  • Inner diameter: 320 mm
  • Outer diameter: 440 mm
  • Width: 73 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577120052
  • Supplier number: SKF 29264
Inner diameter
320 mm
Outer diameter
440 mm
Width
73 mm
Bore type
Cylindrical
Cage
Machined metal
Reference speed
850
Basic static load rating
5100
Tolerance class
Normal
Locating feature, housing washer
None
Limiting speed
1400
Basic dynamic load rating
1110
Bore diameter
320
Height
73
Outside diameter
440
Candidate for remanufacturing
Yes
