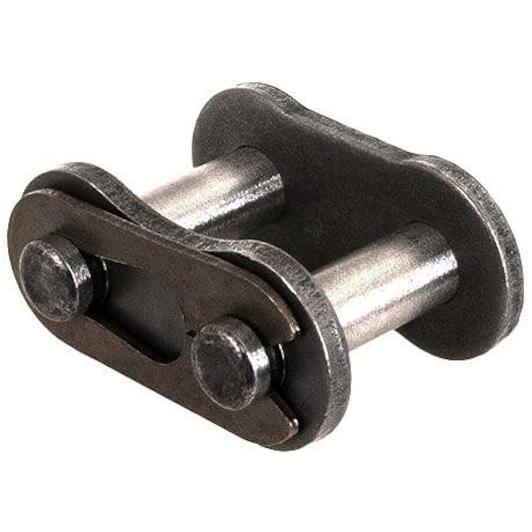

RENOLD SYNERGY 16B-1 S No. 26 closing link simplex 1" - GY16B1S26I

RENOLD
Supplier number: RENOLD GY16B1S26I | EAN 6623900916857
31.60 tax incl.
€26.12 excl. VAT (incl. all environmental contributions)
On stock - immediately available

  • Ordered before 20:00 - delivered tomorrow 09/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
✆ Talk to a specialist

Dependable chain connections with Renold Synergy

Practical benefits
  • Quick and simple installation: Featuring a slip-fit design with a spring clip, you can assemble this simplex connecting link swiftly without complex pressing tools.
  • Strong industrial load capacity: Built with a 60000 N breaking load and 3.1 mm plate thickness, it withstands heavy tensile stresses and continuous operations.
  • Precise fit for chains: The standard 25.4 mm pitch and 8.28 mm pin diameter ensure smooth engagement with your 16B-1 roller chain systems.

In a nutshell

The right choise for

With the Renold Synergy 16B-1 No. 26 connecting link, you can quickly join or repair your simplex roller chain drives. Featuring a practical slip-fit design secured by a spring clip, this link allows fast on-site installation without requiring heavy pressing or riveting tools. It is the ideal solution to minimize downtime during maintenance on industrial conveyors, power transmissions, and agricultural machinery. Engineered with a 25.4 mm pitch, an 8.28 mm pin diameter, and 3.1 mm thick plates, it fits 16B-1 chains seamlessly while delivering dependable tensile performance with its 60000 n breaking load.



Product information FAQ
€31.60
In stock - tax incl.

Product information

Key features according to our expert

  • Pitch: 1 inch; 25,4 mm
  • Length (pin): 34,9 mm
  • Product line: Renold Synergy
  • Weight (kg/m): 2,8 kg/m
  • Thickness (outer plate): 3,1 mm
  • Type (ISO/ANSI): 16B-1
  • Height: 2,2
  • Inside width: 17,02 mm
  • Breaking strength: 60000 N
  • Diameter (pin): 8,28 mm
  • Thickness (inner plate): 3,1 mm
  • Plate height: 21,08 mm
  • Number of the connecting link: 26
  • Version (link): Simplex

Product description:


Renold Synergy - Made to be better:

  • The Renold Synergy has an outstanding reputation as the only, true high-performance roller chain on the market.
  • This reputation is based not only on the years of research and testing that preceded its design, but also on the feedback from engineers around the world who have experienced and endorse the wear resistance, fatigue resistance and exceptional longevity of the Renold Synergy themselves.

Improved fatigue resistance:

  • The design of blade and connector optimises pressure distribution and fatigue performance.
  • The Renold Synergy performs, on average, 30 per cent better than other brands under repeated shock loads and continuous heavy loads.
  • Fatigue Comp

Better wear resistance:

  • Independent tests show that the Renold Synergy performs up to six times better than the competition's highest performance chain.

Made to perform:

  • Every part of Renold Synergy precisely engineered using state-of-the-art development methods such as Finite Element Analysis (FEA). It all contributes to chain performance that is more than the sum of its parts.

Wide range of sizes:

  • Renold Synergy chain is available in British Standard dimensions from 06B to 24B in simplex, duplex and triplex construction. In addition, ANSI Standard sizes are available from 35 to 160 in simplex, duplex and triplex construction.

Scale shape:

  • High blade profile for improved stress distribution; maximised blade thickness within the limitations of the standard.

Bushings:

  • Solid extruded bushings deliver improved roundness and strength compared to rolled bushings. Chamfered ends improve the bearing section and extend service life.

Hole quality:

  • 'Triple punch holing' techniques ensure correct pin and bushing position for even wear.

Fixed fit:

  • Optimised to ensure maximum service life.

Fatigue resistance:

  • Prestressed surfaces increase fatigue resistance.

Wear resistance:

  • Chamfered parts and special surface coating of the pin increase wear resistance.

Connecting link:

  • Has a unique design that ensures that all parts of the chain system are equally strong.

All Features

Pitch
1 inch; 25,4 mm
Length (pin)
34,9 mm
Product line
Renold Synergy
Weight (kg/m)
2,8 kg/m
Thickness (outer plate)
3,1 mm
Type (iso/ansi)
16B-1
Height
2,2
Inside width
17,02 mm
Breaking strength
60000 N
Diameter (pin)
8,28 mm
Thickness (inner plate)
3,1 mm
Plate height
21,08 mm
Number of the connecting link
26
Version (link)
Simplex
  • Brand RENOLD
  • EAN 6623900916857
  • Supplier number RENOLD GY16B1S26I

Frequently asked questions about this product

Answered by specialists
Which chains is this connecting link compatible with?
This link is designed for simplex roller chains of type 16B-1 (BS) with a 1-inch (25.4 mm) pitch.
What does link number No. 26 indicate?
Link number No. 26 denotes a slip-fit connecting link secured with a spring clip, allowing straightforward assembly without heavy press tools.
What are the main dimensions of this connecting link?
It has a pitch of 25.4 mm, an inside width of 17.02 mm, a pin diameter of 8.28 mm, and a pin length of 34.9 mm.
What is the breaking strength of this connecting link?
The breaking strength of this connecting link is 60000 N.
Can this connecting link be used on a duplex chain?
No, this version is specifically designed for single-strand simplex chains (16B-1). A 16B-2 link is required for duplex chains.
