What are the dimensions of this drill bush?

This drill bush has an inside diameter of 8 mm and a total length of 10 mm.

Which standard does this Phantom drill bush comply with?

It is manufactured according to the DIN 179-A standard for headless press-fit drill bushes.

What are the tolerances of this drill bush?

The internal bore features an F7 tolerance, and the outer diameter features an n6 tolerance.

Is this drill bush hardened and ground?

Yes, the Phantom DIN 179-A drill bush is fully hardened and precision ground on both the inside and outside.

What is a DIN 179-A drill bush used for?

It is pressed into drilling jigs to accurately guide drill bits and prevent wear on the fixture.

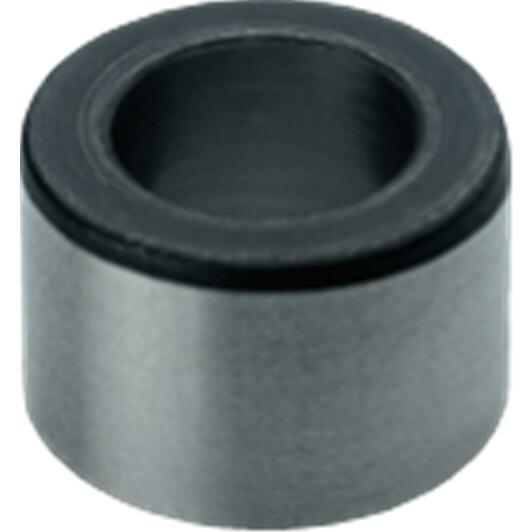

PHANTOM 848790800 drill sleeve DIN 179-A' short version 8 mm

Name: PHANTOM 848790800 drill sleeve DIN 179-A' short version 8 mm
Brand: PHANTOM
SKU: 51590068
Price: 5.64 EUR
Availability: InStock

Supplier number: PHANTOM 848790800 | EAN 8716563441861

5.64 tax incl.

€4.66 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 02/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL

✆ Talk to a specialist

Accurate drill guidance with Phantom

Practical benefits

High precision drill alignment: With a precision ground F7 inner diameter tolerance, you guide drill bits straight without deflection or wobble.
Outstanding wear resistance: The fully hardened steel construction ensures you achieve long service life and reliable durability during demanding production cycles.
Secure fit in jigs: Thanks to the ground n6 outer diameter, you press the compact bushing securely into your fixture plates.

In a nutshell

The right choise for

With the Phantom din 179-A short drill bush 8.0x10 mm, you guide twist drills with exact precision directly into jigs and fixtures. The ground internal bore with an F7 tolerance prevents drill wandering or slipping at start-up, ensuring perfect squareness and repeatable hole positioning every time. Thanks to the precision ground outer diameter with an n6 tolerance, you press the compact bushing securely and tightly into your fixture plates without play. Fully hardened and ground both inside and out, this drill bush protects your jigs from wear during repetitive production cycles, helping you achieve consistent accuracy and dependable results.

Product information FAQ

€5.64

In stock - tax incl.

Key features according to our expert

Inner diameter: 8 mm
Length: 10 mm

Product Description:

Phantom DIN 179A Drill Bush short series
DIN 179A, in- and external ground, completely hardened, tolerance on the Bore Size F7, tolerance on the outer diameter n6

All Features

Inner diameter: 8 mm
Length: 10 mm
Standard: DIN 179-A
Tolerance d1 (tol. d1): F7
Total length (l1): 10 mm
Tolerance d2 (tol. d2): n6
Diameter ø (d2): 12 mm
Diameter ø (d1): 8 mm

Brand PHANTOM
51590068
EAN 8716563441861
Supplier number PHANTOM 848790800

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this drill bush?: This drill bush has an inside diameter of 8 mm and a total length of 10 mm.
Which standard does this Phantom drill bush comply with?: It is manufactured according to the DIN 179-A standard for headless press-fit drill bushes.
What are the tolerances of this drill bush?: The internal bore features an F7 tolerance, and the outer diameter features an n6 tolerance.
Is this drill bush hardened and ground?: Yes, the Phantom DIN 179-A drill bush is fully hardened and precision ground on both the inside and outside.
What is a DIN 179-A drill bush used for?: It is pressed into drilling jigs to accurately guide drill bits and prevent wear on the fixture.
