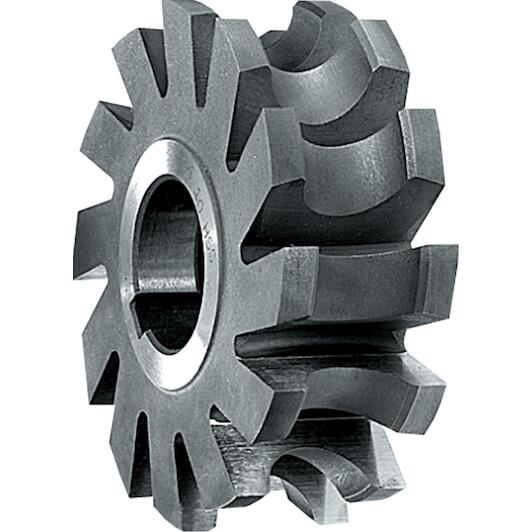

PHANTOM 383500800 HSS-E concave cutter DIN 855-A 80mm R8

348.15 tax incl.
€287.73 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL

Product Description:

  • Phantom HSS-E Concave Milling Cutter DIN 855 A
  • DIN 855 A, for cutting convex grooves
Key features according to our expert
  • Diameter: 80 mm
  • Bore size: 27 mm
  • Shape (side and face cutter): Concave
  • Height: 32 mm
Specifications / All features
  • Brand: PHANTOM
  • EAN: 8716563381075
  • Supplier number: PHANTOM 383500800
Diameter
80 mm
Bore size
27 mm
Shape (side and face cutter)
Concave
Height
32 mm

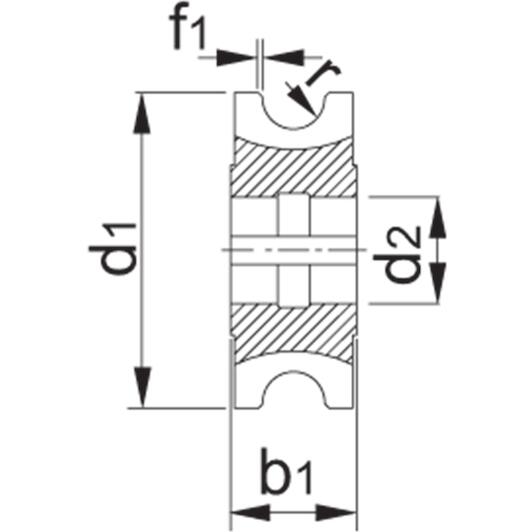

Radius (r)
8 mm
Tool material
HSS-E
Number of flutes (z)
10
Diameter ø (d1)
80 mm
Tolerance d2 (tol. d2)
H7
Coolant feed
No
Tolerance b1 (tol. b1)
js16
Tolerance d1 (tol. d1)
js16
Surface
Bright
Bore ø (d2)
27 mm
Thickness (b1)
32 mm
Shank type
Bore
Norms
DIN 855-A
Corner chamfer (f1)
0,8 mm
